optical ESCON fiber connector

Products Category : Fiber Optic Connector

Details

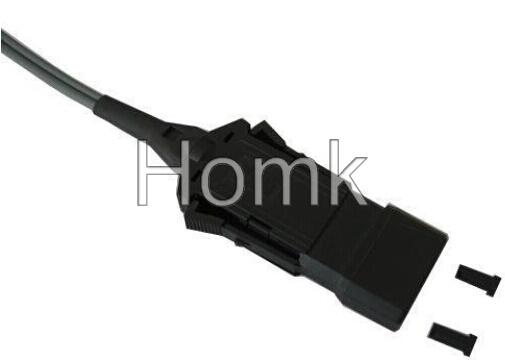

Optical ESCON fiber connector

1. Features:

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule

2. Specifications:

Items	Single mode					Multimode
	PC	UPC		APC		62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB					<0.3dB
Return Loss	e45dB		e50dB		e60dB	e35dB
Durability	<0.1dB typical change,500 matings
Operating Temperature	-40 to +75					-40 to +75
Ferrule Hole Sizes	125.0+1/-0um, Conentricity:d1um					125um,Conectricity:1d3um
	125.3+1/-0um, Conentricity:d1um					127um,Conectricity:1d3um
	125.5+1/-0um, Conentricity:d1um					128um,Conectricity:1d3um
	126.0+1/-0um, Conentricity:d1um
