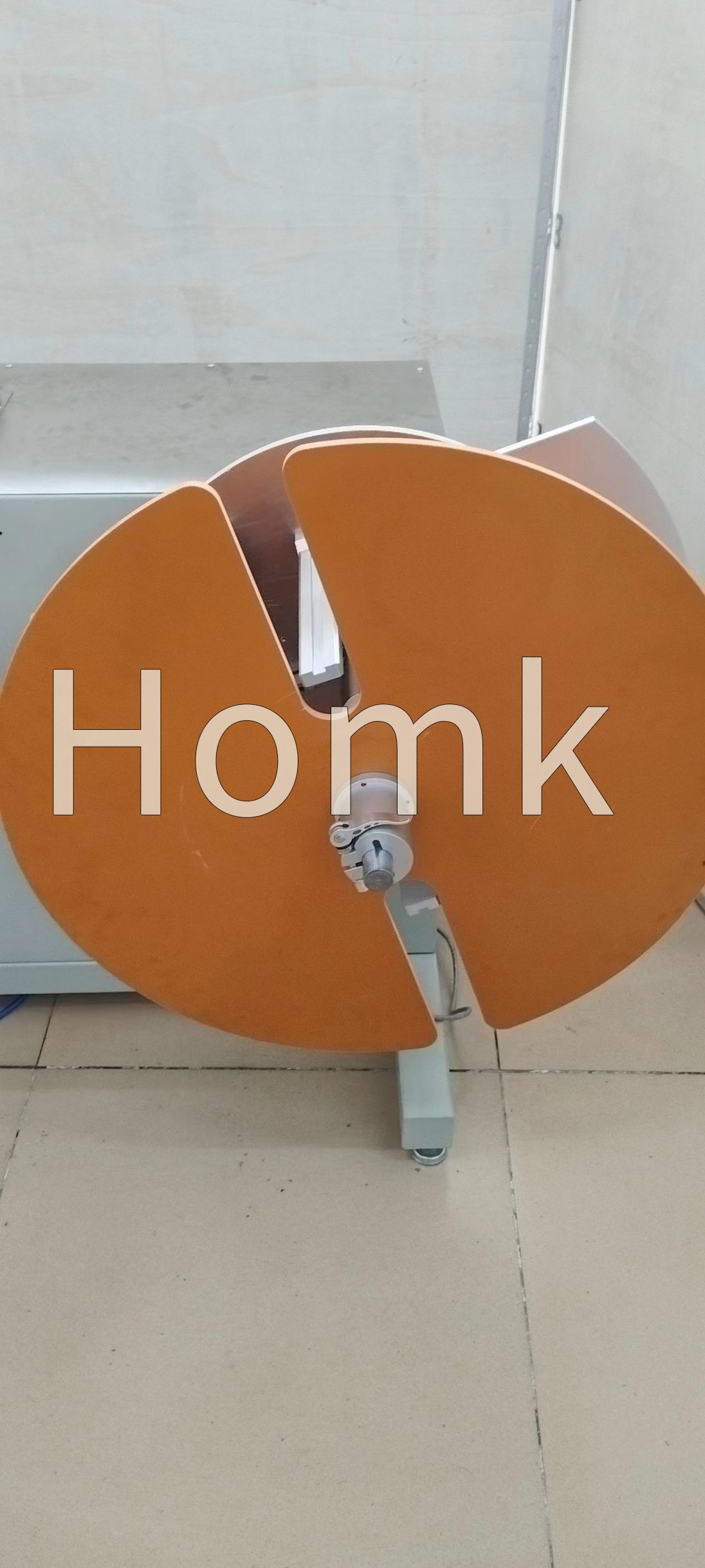

Automatic Armour Cable Wrapping Machine HK-26T

The machine suit for wrapping all kinds outdoor cable.

The winding is very tight, does not damage the optical cable, and

the calculated length is accurate. It is the best choice for waterproof armored outdoor optical cables.

1、 Specifications of the wire that can be cut: φ2.0-φ7.0 single-core standard cable, φ2.0-φ3.0 double-core；

2、 Cutting length: < 2100 meters;

3、 Cutting accuracy: 3‰.

4、 * Outer diameter of take-up reel: <=620mm；

5、 * The inner diameter of the loop is: 120mm-400mm (the ring head needs to be selected);

6、 Pay-off load and reel size: load-bearing <=150Kg. Reel size< = outer diameter φ650mm * height 600mm; > = outer diameter φ300mm * height 300mm;

7、 The cutting speed is adjustable from 0.3 to 1.2 m/s;

8、 Equipment dimensions: main unit length * width * height = 1210×800×1100mm

Pay-off machine: length * width * height = 120×96×100mm

9、 Operating temperature: 0°C~40°C

10、 power：AC220V50/60Hz；

11、 Compressed：0.4-0.8Mpa；

12、 Power supply: host 1kw + pay-off machine 1.5w；
