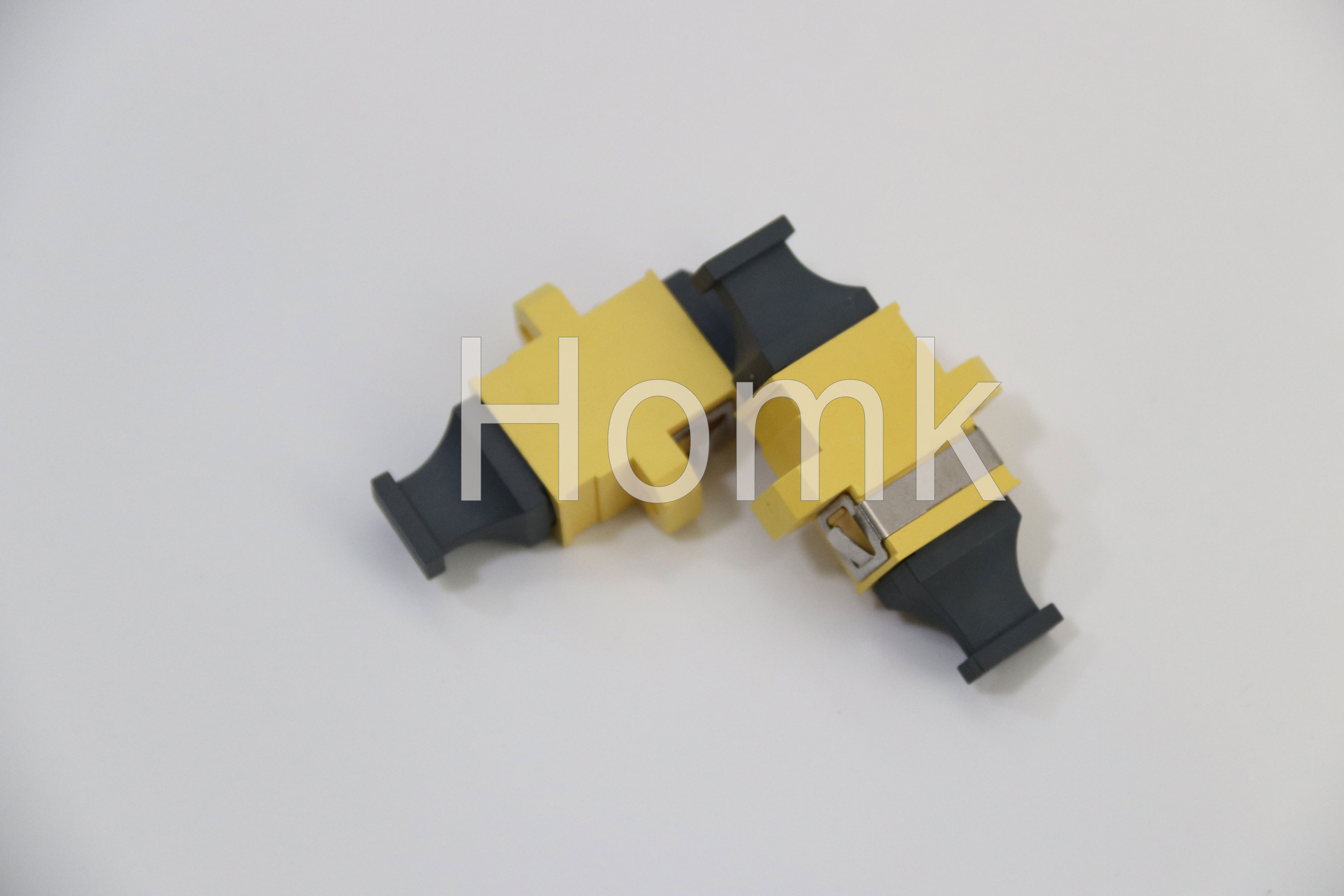

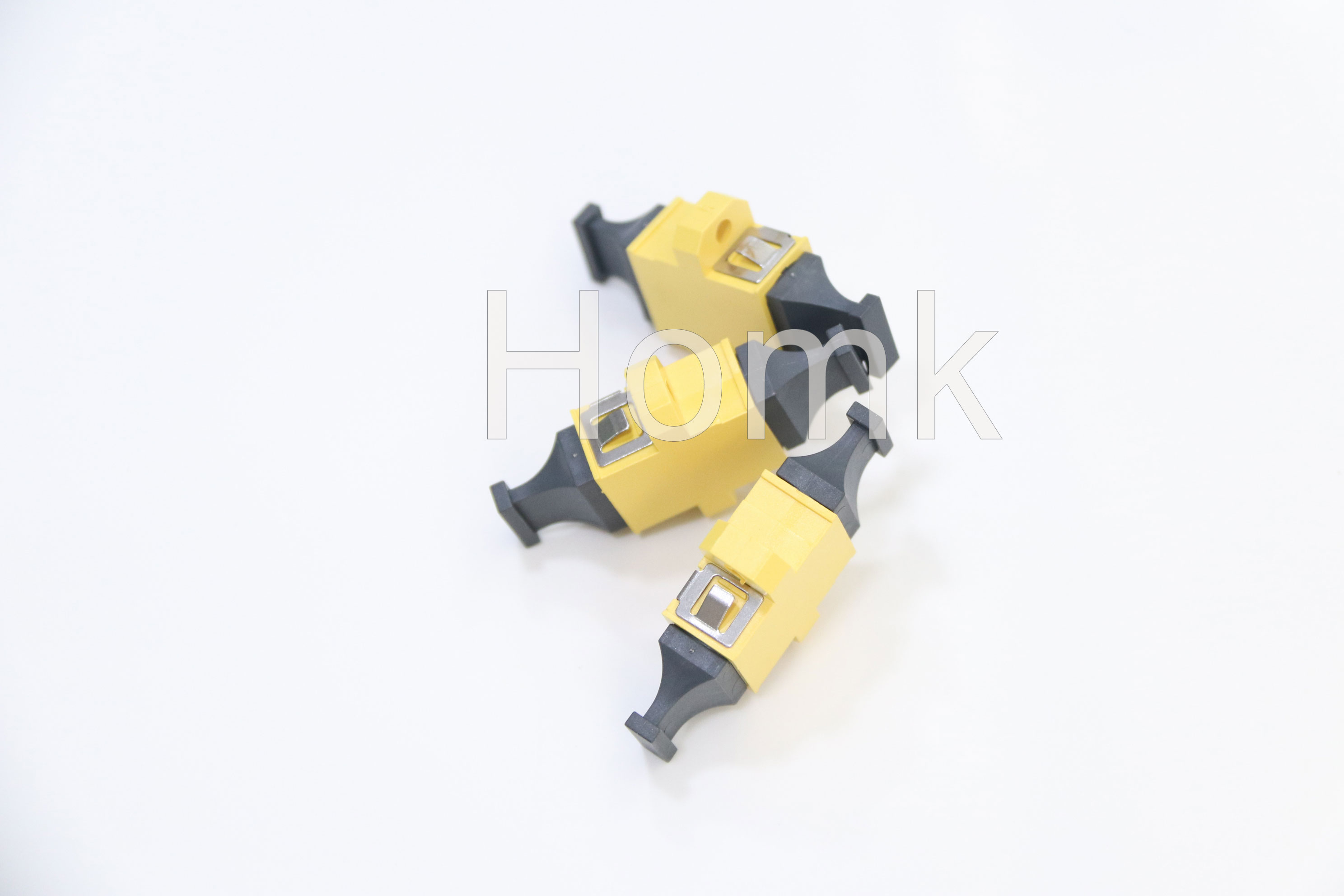

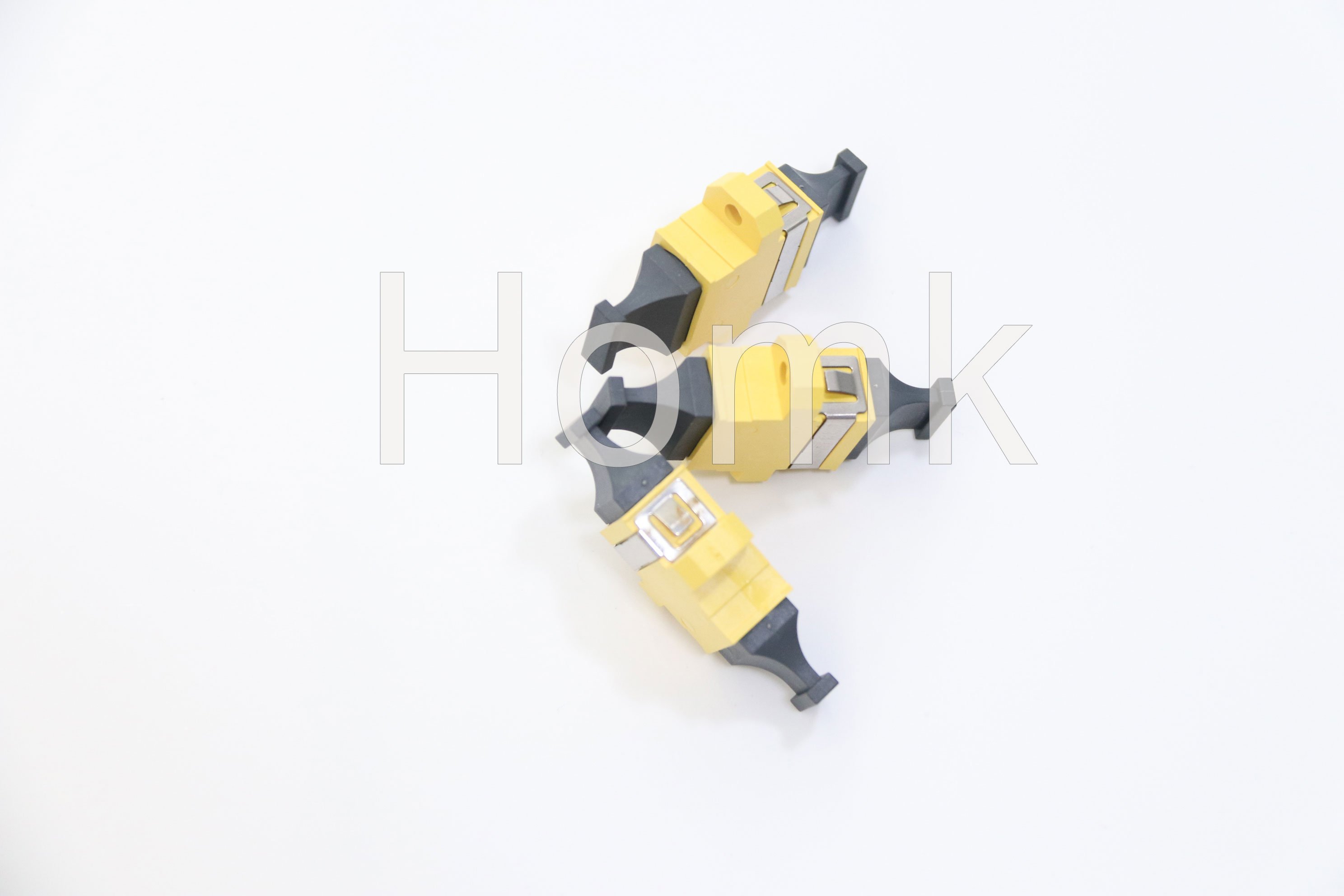

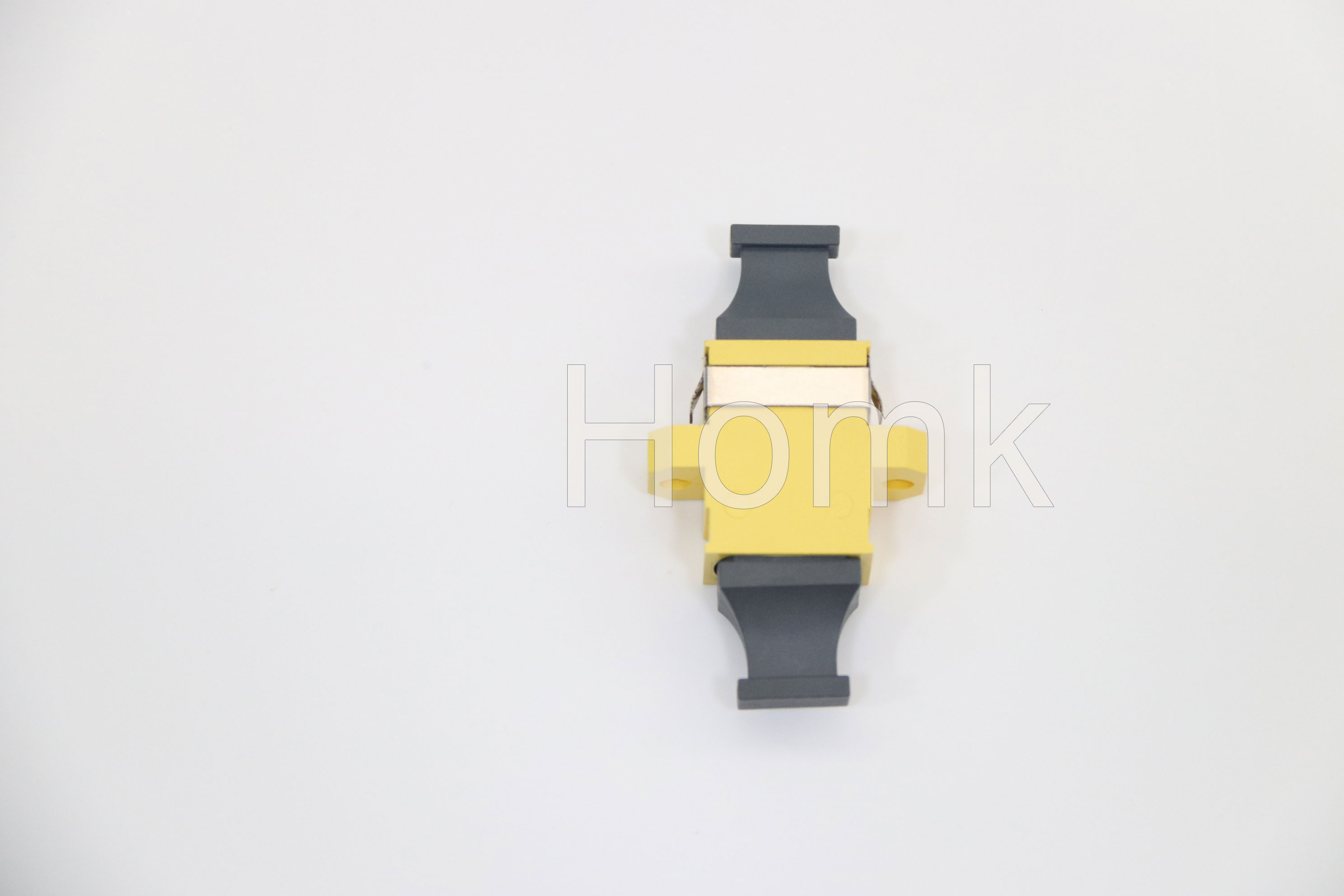

Yellow MPO Fiber Adapter
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.
Homk provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability. like SC Fiber Optic Adapter, LC Fiber Optic Adapter, FC Fiber Optic Adapter, ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter, E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter
Features:
Good inerchangeability
Environmentally Stable and Reliable
Accurate Size
Excellent Return Loss
Applicable standard: IEC 61754-13
Complete Hybrid adapter
Technical Standard:
Insertion Loss ≤0.2dB
Retentiveness 200-600g
Mating Durability1000 times≤ 0.2dB
Exchangeability: < 0.2dB
Salt Spray: ≤ 0.2dB
Sleeve material: ceramic / metal
Temperature Rang -40 to +85
Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
SM | MM | SM | MM | SM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | Time | >1000 | >1000 | >1000 | ||||||
Operating Temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
