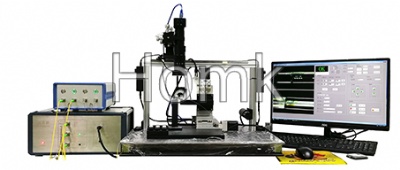

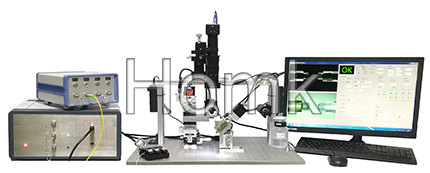

WDM coupling system is a kind of system which is mainly used for automatic coupling and packaging of optical devices such as CWDM and DWDM. The system adopts modular design, including aiming platform, aiming platform, driving host and computer, which is suitable for a variety of production places. The system has the characteristics of high speed, simple operation and stable test, which reduces the dependence on skilled workers and improves the speed, qualified rate and cost of optical device production.

One machine can couple both transmission end and collimator.

One click operation can realize automatic optical coupling.

The speed is fast, and the time of each aiming is about 20 seconds.

The automatic test system automatically adjusts to the right position.

After the data storage test is completed, the data is automatically saved to the specified path.

Easy to use, the system contains a variety of test modules, suitable for different places.

Save labor and reduce dependence on skilled workers
