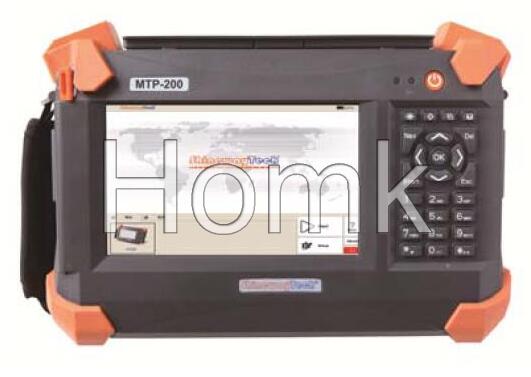

USA Shineway MTP-200 OTDR 850/1310/1550nm
ShinewayTech® MTP-200 series are the compact multi-functional platform, which are specially designed
for FTTx/WAN applications and can meet all test requirements of installers, contractors and service
operators during network installation, construction, maintenance and troubleshooting. It is convenient and
accurate for auto/manual testing, multi-wavelength testing and multi-functional analysis.
Multi-Function and High Performance OTDR Testing
Dynamic Range up to 50dB
Short zone: EDZ 0.8m, ADZ 4.5m
Auto/Manual test and analysis
Multi-wavelength testing
Visible laser source function
In-Line test and through Splitter test(1625/1650nm with filter)
OTDR Module up to four wavelengths, SM/MM Option
Fault locating, fiber length/loss/return loss measurement,connector/ splice/ splitter/ macro bend/fiber-end detection
LAN/WAN/FTTx application
GR-196-CORE (.SOR) file format
SOR and JPG file format
Flexible file Naming
Specifications
MTP-200 Series
Display 7 inch TFT Touch Screen (800×480)
Connectivity USB×2; 10/100Mbit/s RJ-45×1
Memory 2GB
Power Supply Rechargeable Li-Ion Battery/AC Adapter
Battery Life 10 hours continuous operation
Working Temp. -20℃ - 50℃
Storage Temp. -40℃ - 60℃
Humidity 0 - 95% (Non-Condensing)
Weight 2.1kg
Dimensions (L×W×H ) 290×175×75mm
| Module | Wavelength (±20nm) | Dynamic Range | EDZ | ADZ |
| Module | 1310/1550 | 38/37 | 0.8 | 4.5 |
| MTP-200-20VD | 1310/1550 | 45/43 | 0.8 | 4.5 |
| MTP-200-20VF | 1310/1550 | 50/48 | 0.8 | 4.5 |
| MTP-200-31VC | 1310/1550/1625 | 38/38/37 | 0.8 | 4.5 |
| MTP-200-31VCP | 1310/1550/1625 | 42/41/40 | 0.8 | 4.5 |
| MTP-200-31VCP | 1310/1550/1625 | 38/38/37 | 0.8 | 4.5 |
| MTP-200-31VCPL | 1310/1550/1625 | 42/41/40 | 0.8 | 4.5 |
| MTP-200-31VCPL | 1310/1550/1650 | 42/40/39 | 0.8 | 4.5 |
| MTP-200-40VC | 850/1300/1310/1550 | 23/36/38/36 | 1.5 | 8/8/10/10 |
| Selectable Range | SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km MM: 1.3, 2.5, 5, 10, 20, 40Km | |||
| Pulse Width | SM: 5ns,10ns,30ns,100ns,300ns,1μs,2.5μs,10μs,20μs MM: 5ns, 10ns, 30ns, 1μs, 2.5μs | |||
| Averaging Time | Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s | |||
| Emitter Type | LD | |||
| Connector | FC/PC (Interchangeable SC, ST) | |||
| Distance Measure Accuracy | ±(1m + ×distance + sampling spacing) | |||
| Attenuation Detect Accuracy | ±0.05 dB/dB | |||
| Reflection Detect Accuracy | ±4 dB | |||
| Visible Laser Source | Output Power: ≥ -3dBm; MOD Frequency: 1Hz; Detecting Range: 5Km | |||
| MCI100 Optical Connector Inspector Module (Optional) | ||||
| Field of View | 400μm×300μm | |||
| Resolution | ≤1.5μm | |||
| Focusing | Manual Focus | |||
| Microscope Dimensions | Ø32×175mm | |||
| LS100 Stabilized Laser Source（Optional） | ||||
| Wavelength (±20nm) | Same as OTDR’s | |||
| Output Power | ≥-7dBm | |||
| PM100 Normal Power Meter Module(Optional) | ||||
| Calibrated Wavelength | 850nm,1300nm,1310nm,1490nm,1550nm,1625nm,1650nm | |||
| Measurement Range | -70dBm - +6dBm (-60dBm - +6dBm @ 850nm) | |||
| Detector Type | InGaAs | |||
| Display Resolution | 0.01dB | |||
| Accuracy | ± 5% ± 0.01nW (±0.5dB@850nm) | |||
