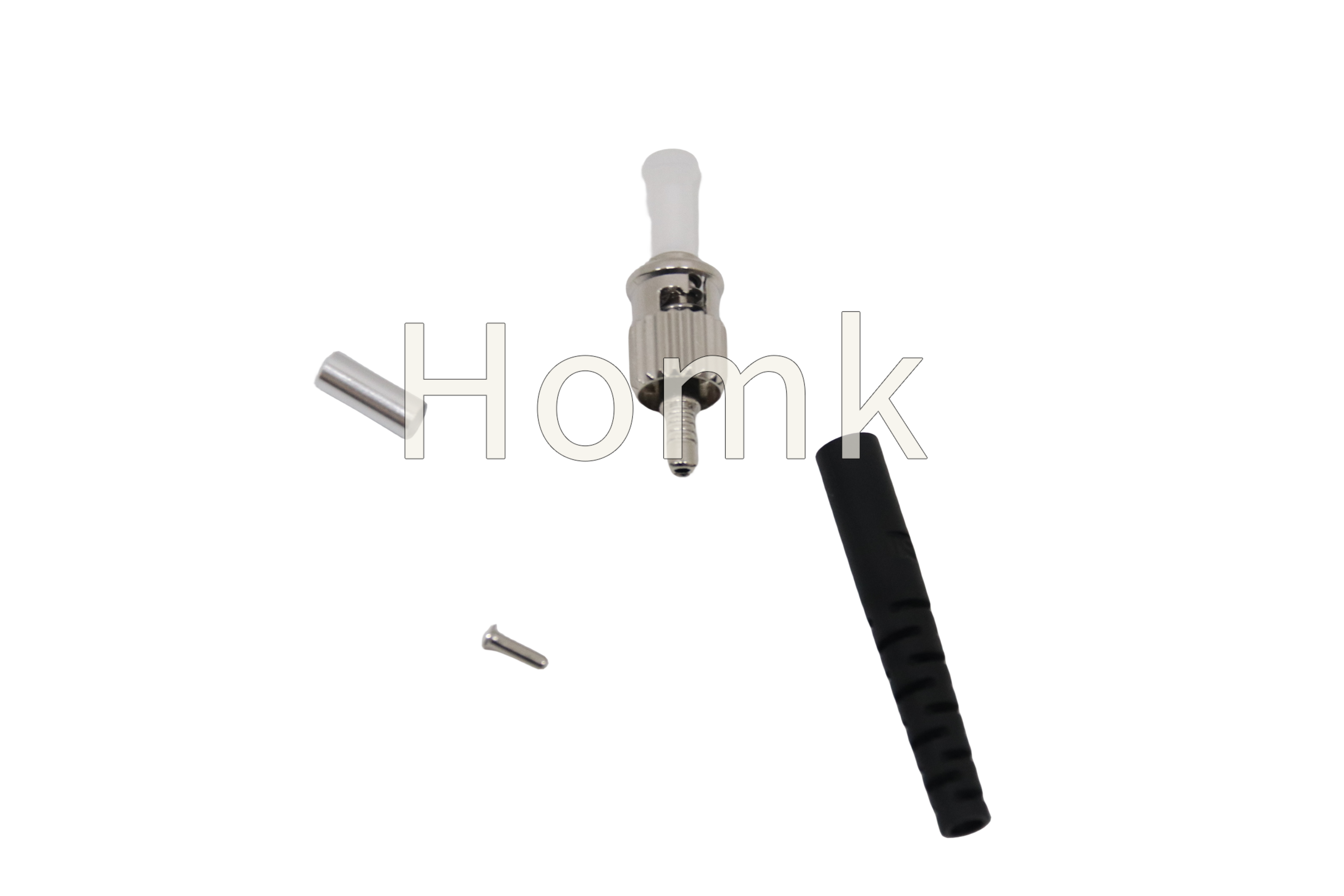

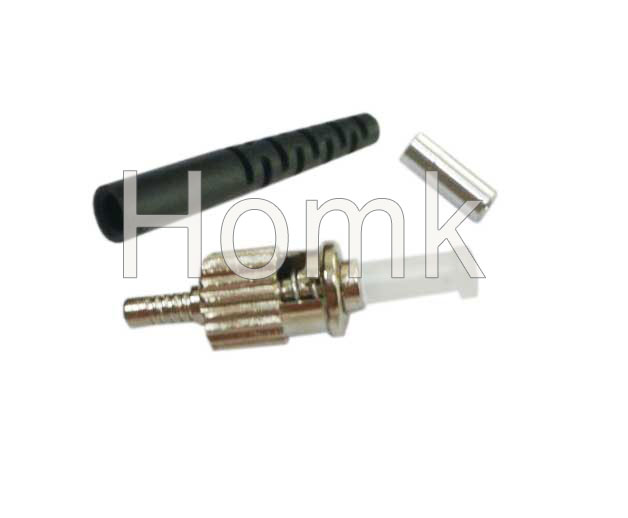

ST SM SX 2.0mm fiber optic connector
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---High precision alignment
---Nickel plated brass body
---Free-floating ceramic ferrule
---Bayonet style housing for easy termination
Item | LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc | |||||
Type | Multi-Mode | Single-Mode | ||||
Light Characteristic | Operating Wavelength | 850nm& 1300nm | 1310nm & 1550nm | |||
Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB | ||||
Mechanical Testing | Repeatability | ≤ 0.2dB | ||||
Exchange | ≤ 0.2dB | |||||
Durability | > 1000 (Times) | |||||
Temperature | Storage Temperature | 25 ~+85 | ||||
Operating Temperature | 25 ~+85 | |||||
Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement | |||||
