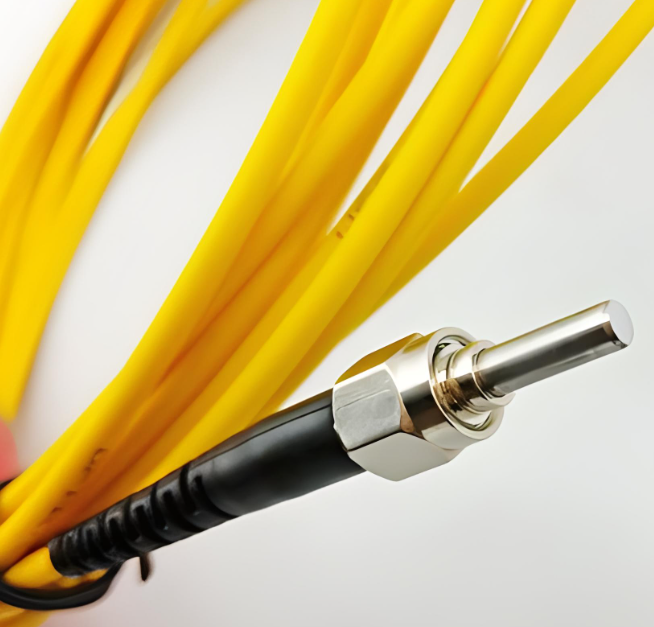

SMA Fiber Pigtail
Features:
1. Light in weight\energy saving and safe
2. High bandwidth\excellent flexibility\vibration resistance
3. Anti-electromagnetic interference\stable and reliable signal transmission
4. Heat and code resistant(-20- 70 Celsius Degrees)
5. Easy to install and connect, maintenance easily
6. Complied with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.
Parameters | Unit | Numerical value |
Fiber diameter | mm | 1.0 , 0.5, 0.75 |
Cable diameter | mm | 2.2± 0.1 or 1.0± 0.05 |
Fiber material | --- | PMMA |
Jacket material | --- | PE |
Attenuation | dB/m | ≤ 0.2 |
Insertion loss | dB | < 0.5 |
NA | --- | 0.5 |
Wavelength | nm | 650 |
Incident angle | --- | ≤ 60° |
Bandwidth | MHz· 100m | ≥ 10 |
Cable length | m | 1~100m to order |
Bend radius | --- | ≥ 10 times of fiber dia. |
Operating temperature | Celsius Degrees | -20~70 |
Storage temperature | Celsius Degree | -20~70 |
Refractive index | --- | Step index |
