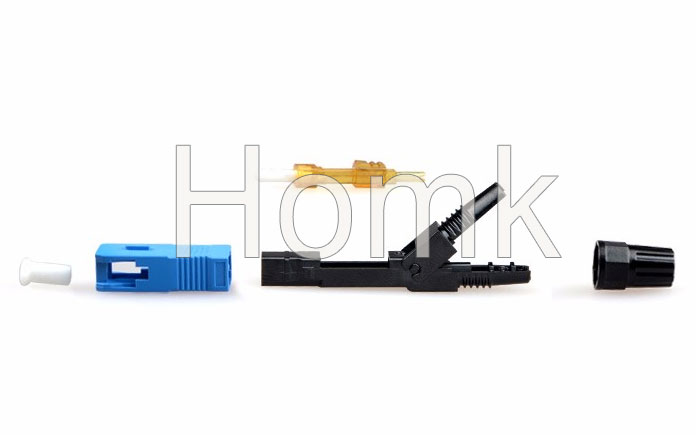

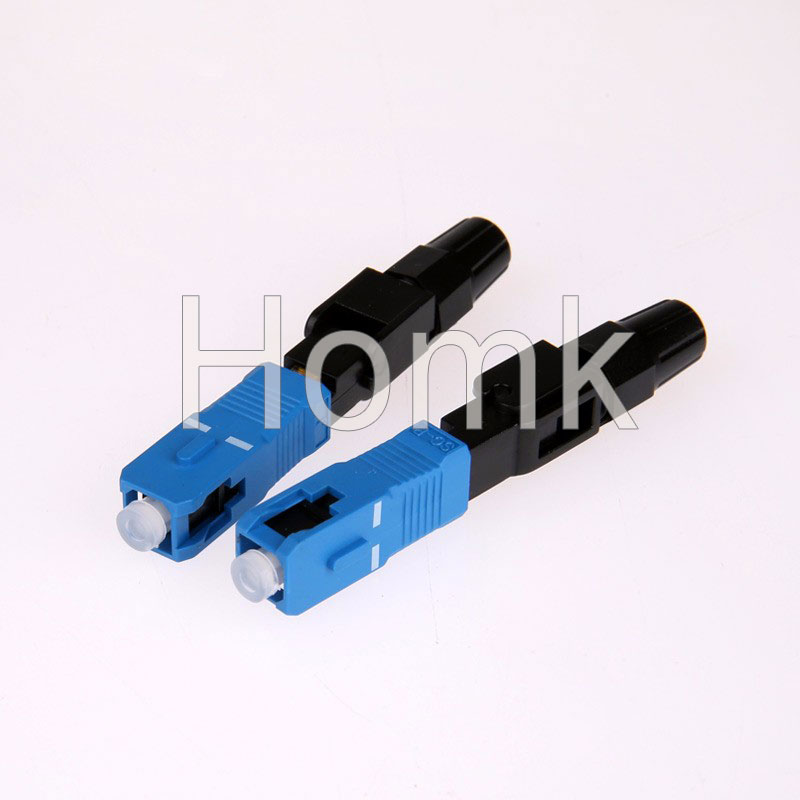

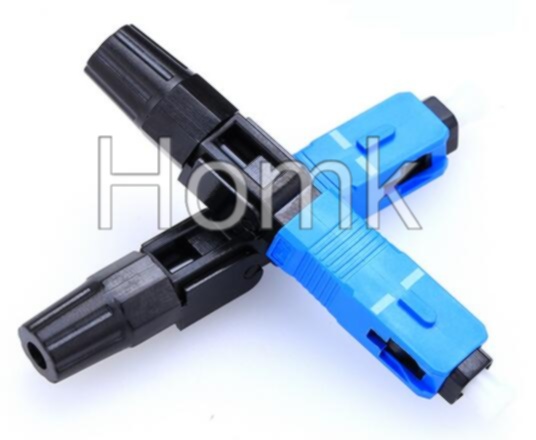

SC UPC Fiber Fast Connector

The Fast Connector (Field Assembly Connector or Field terminated fiber  connector, quickly assembly Fiber connector) is a revolutionary field  installable optical fiber connector that requires no epoxy and no  polishing. The unique design of the patented mechanical splice body  incorporates a factory-mounted fiber stub and a pre-polished ceramic  ferrule. Using this onsite assembly optical connector, it is possible to  improve the flexibility of optical wiring design as well as reducing  the time required for fiber termination. The Fast connector series are  already a popular solution for optical wiring inside buildings and  floors for LAN & CCTV applications and FTTH.

Feature:

·Low insertion loss ,high return loss;

·Reliable optical performance;

·Good connection stability;

·Convenient for field installation;

·Installs fast,Operates easy ;

·Low cost.

	Connector type	SC/UPC
	Fiber cable	0.9/2.0/3.0 In/outdoor FTTH cable
	insertion loss	≤0.3dB(Max0.5db)
	Return loss	≥50dB
	Plug times	≥1000PCS
	Working temperature	-40℃~+85℃
	Application	FTTH Project
