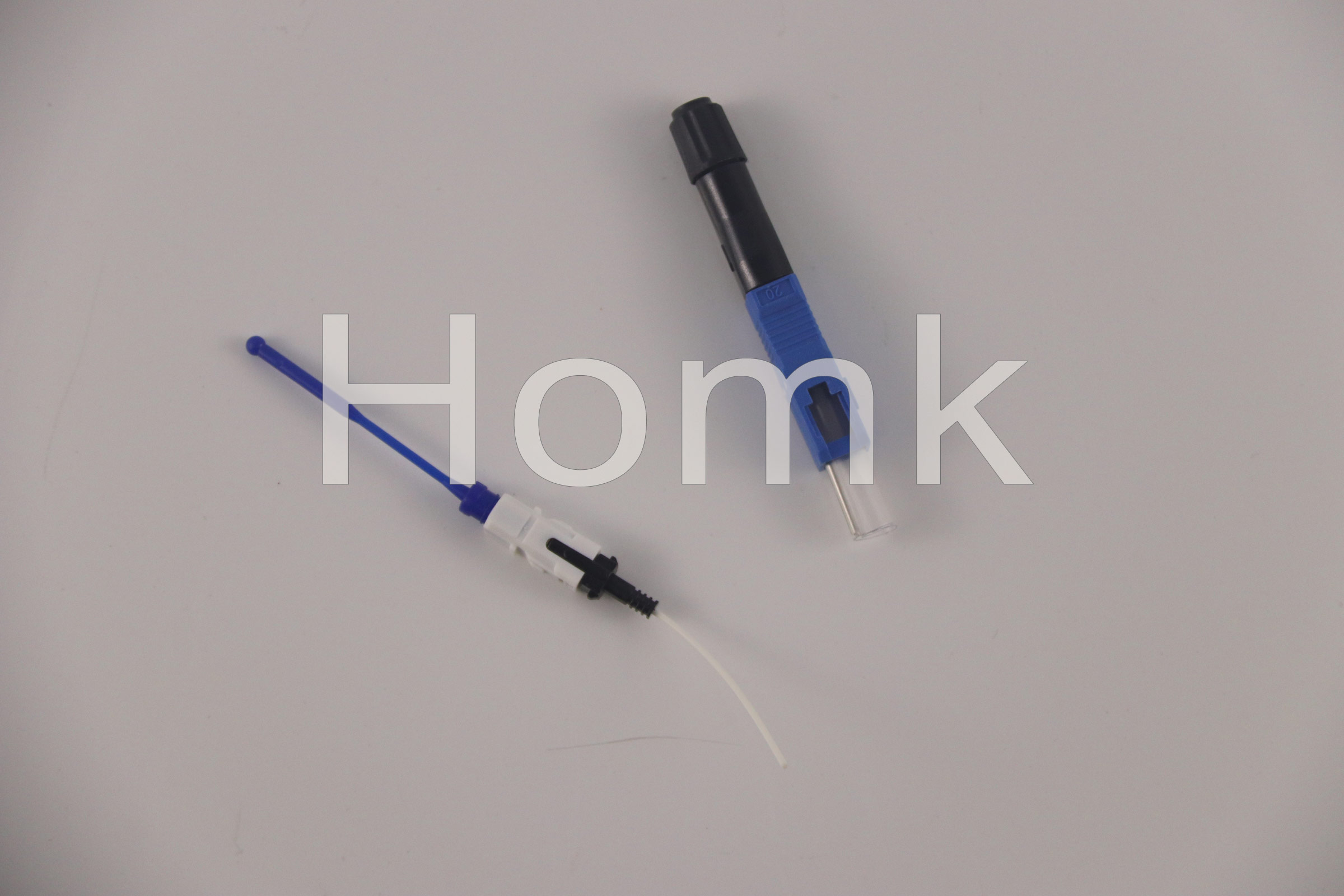

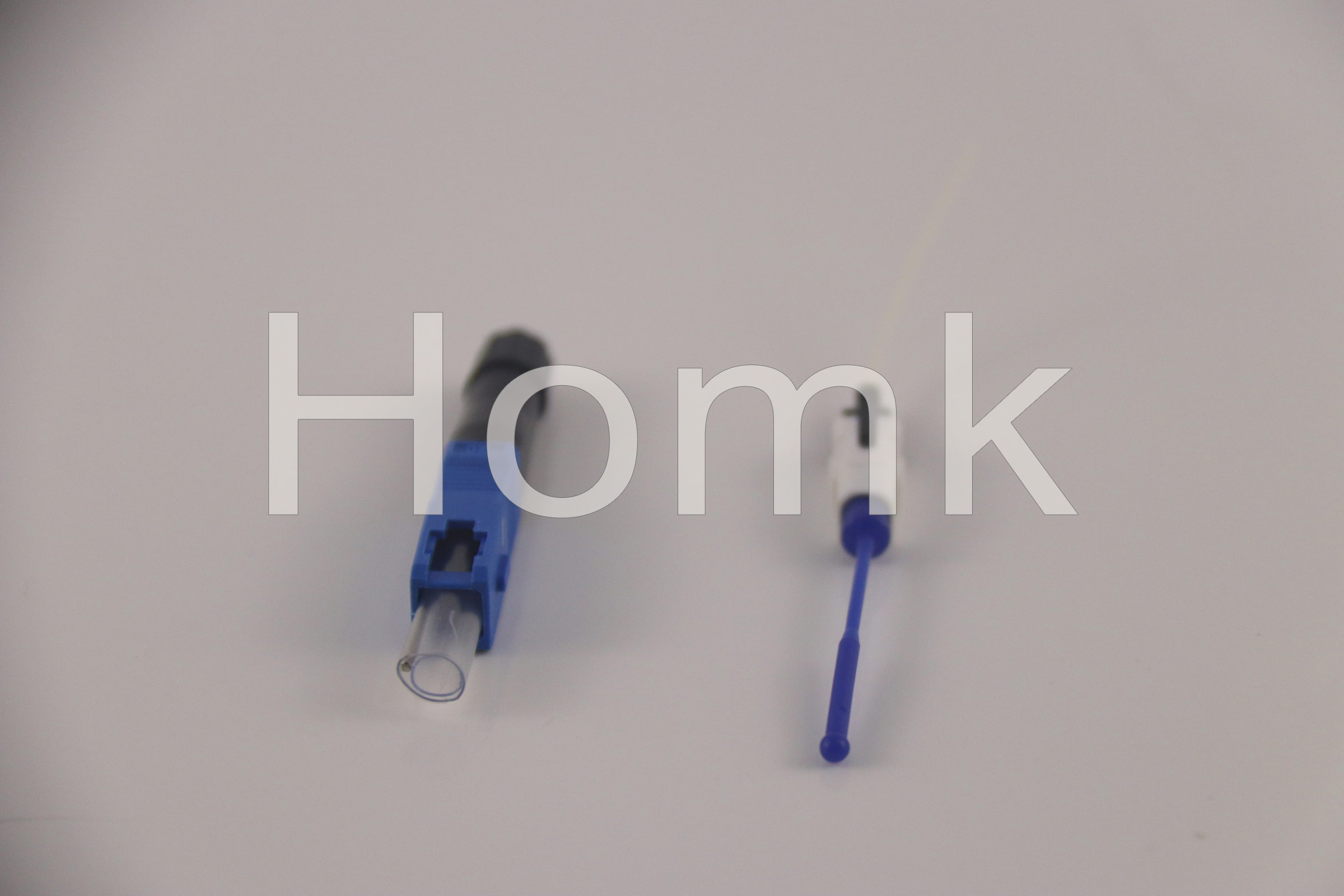

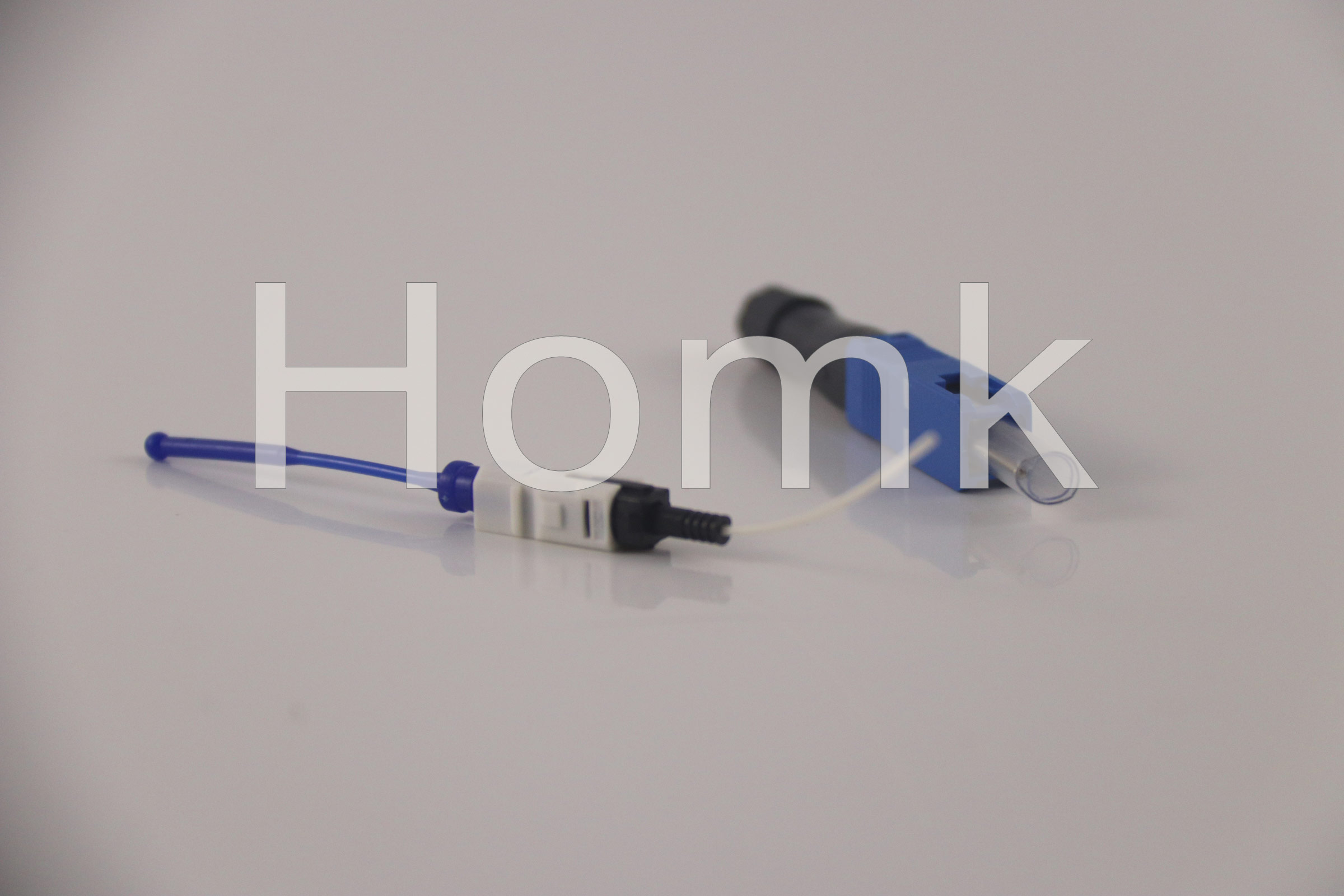

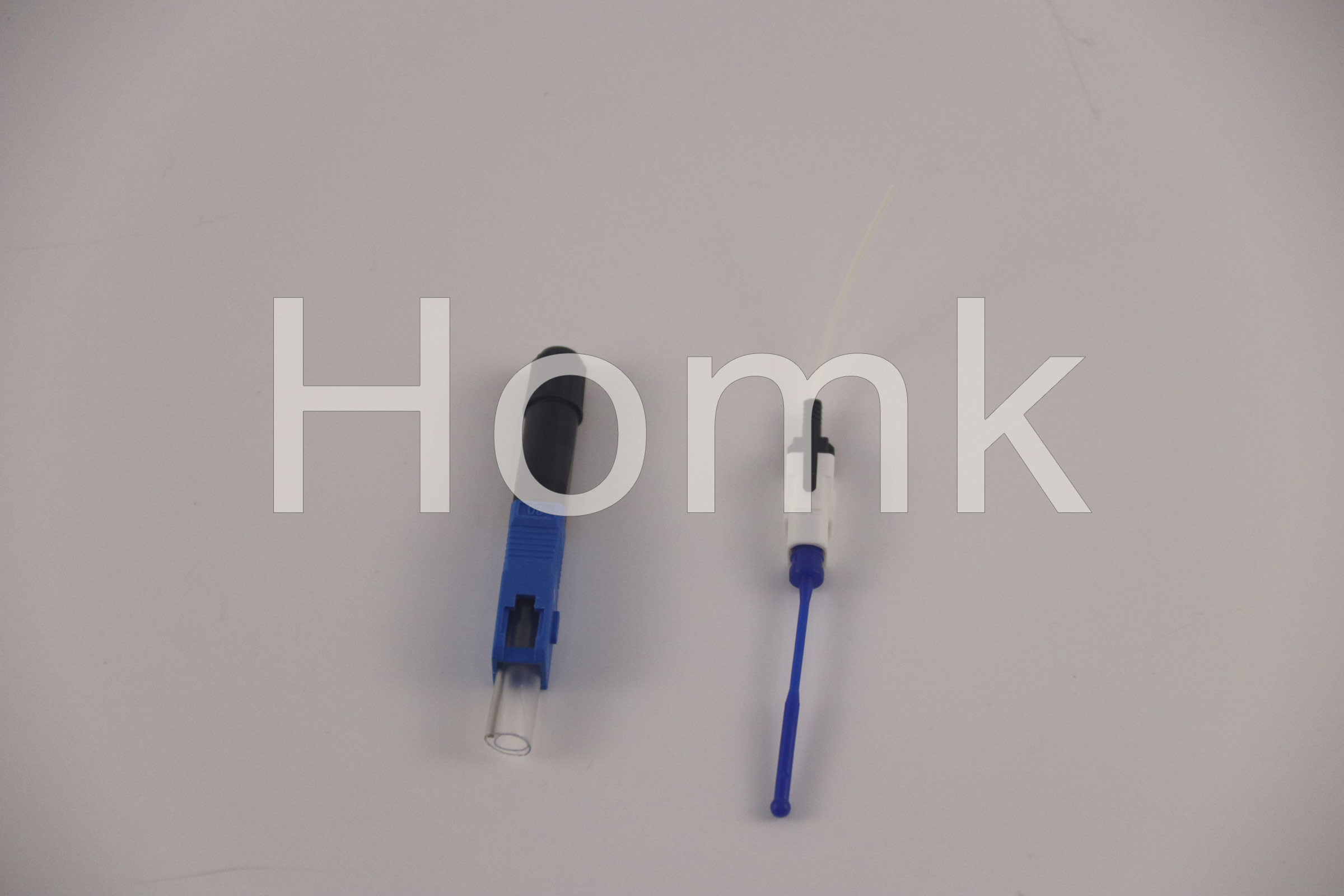

SC/PC Hot Melting Type optical fiber fusion splice fast connector

The fast connector is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of
curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass
The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss
optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the
V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream
can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple
cable clamp, special assembly fixtures to meet the requirements, the operator simple and quick.

 Features

-No special assembly tool

-Can be reconnected in the field

-No epoxy or polishing required

-Compatible with both 3mm drop cable and 3x2mm flat cable

-Fast and easy installation (within 90s)
