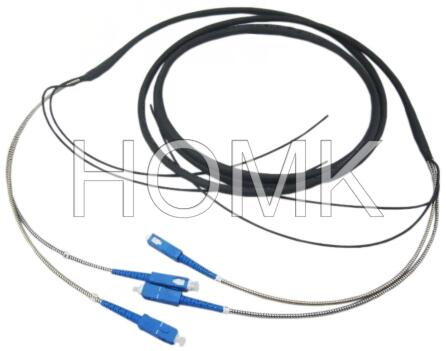

SC Armoured Duplex Outdoor Patch Cord A patch cord is a fiber optic cable used to attach one device to another for signal routing. Patch cord Features: Patch cord Application: Patch cord Specification: Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000 SM MM SM MM SM MM SM PC UPC APC PC PC UPC PC PC UPC PC PC APC Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3 Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75 Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510 Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2 Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2 Operating temperature ℃ -40~75 -40~75 -40~75 -40~75 Storage temperature ℃ -45~85 -45~85 -45~85 -45~85 Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9
Armoured fiber patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable.They are strong and flexible,can be bend randomly without being broken.
Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
