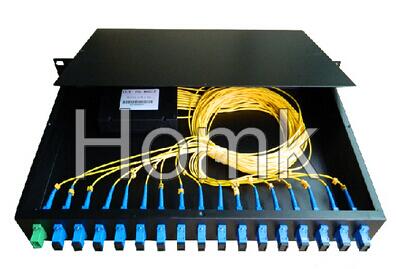

SC 1*16 fiber splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Homk provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability
Applications:
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
1×N,2XN box module PLC Splitter
Parameters | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | 1×16 | 2×16 | 1×32 | 2×32 | 1×64 | 2×64 | 1×128 |
| Operating Wavelength(nm) | 1260~1650 | ||||||||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/ 4 | 4.0/ 4.2 | 7.1/ 7.3 | 7.6/ 7.8 | 10.2/ 10.5 | 11.0/ 11.2 | 13.5/ 13.7 | 14.4/ 14.6 | 16.5/ 16.9 | 17.5/ 17.9 | 20.5/ 21.0 | 21.0/ 21.5 | 24.2/ 24.5 |
| Loss Uniformity(dB) | 0.4 | 0.6 | 0.6 | 1 | 0.8 | 1.2 | 1.2 | 1.5 | 1.5 | 2 | 2 | 2.2 | 2.5 |
| Return Loss (dB)(P/S Grade) | 55/50 | ||||||||||||
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 | 0.3 | 0.4 | 0.35 | 0.4 | 0.5 |
| Directivity (dB) | 55 | ||||||||||||
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.4 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~8°C)(dB) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(°C) | -40~85 | ||||||||||||
| Storage Temperature(°C) | -40~85 | ||||||||||||
| Module Dimension (mm)(L×W×H) | 100×80×10 | 140×115×18 | |||||||||||
