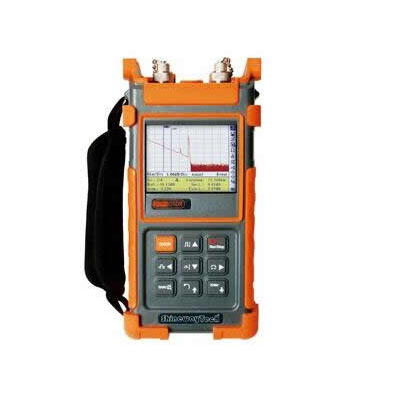

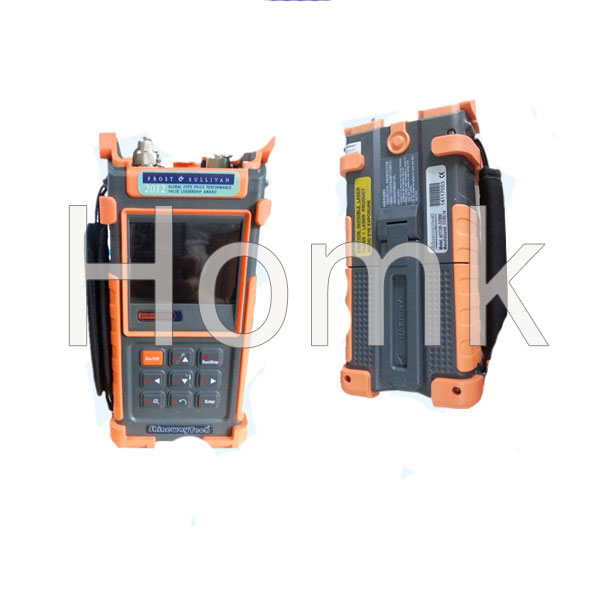

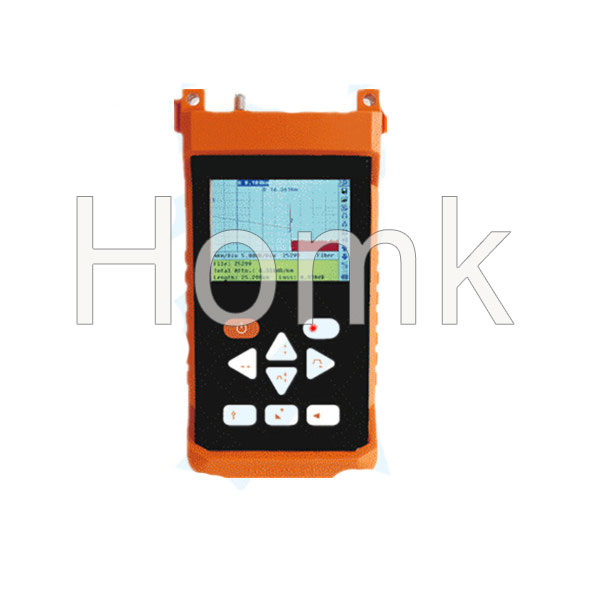

Palm OTDR (S20A/N)
The palm OTDR series are optical fault locating and analyzing tools for optical fiber network. with this palm OTDR excellent performance and higher user value, the palm OTDR offers an innovatory test method for telecommunication network.
As a fault locating and analyzing tool much economical than traditional OTDR, the palm OTDR series feature hand-held, compact, lightweight and easy-to-use.
The palm OTDR has unique hot key design makes it faster and more convenient to review and analyze the event. This palm OTDR has powerful functions, such as supporting averaging and real time test mode. And the palm OTDR can be used in both single mode (1310/1550nm) fiber applications. with its multi-functional carrying softbag which is convenient for both field and lab testing, the palm OTDR series have become the indispensable and ideal tools for fiber networks construction, daily check and maintenance in FTTX, WAN and CATV systems.
Besides, palm OTDR can save and transfer the measurement curves data to a PC by the software "TraceManager" for further analyzing, reporting and printing. It successfully meets the requirement of different fiber connect type by simply changing different adaptors.
The palm OTDR Features
Lightweight, portable and ideal for FTTX
Full functions, optional single/multiple mode fiber application
High precise measurement, large memory capacity (300 test curves)
without hard disk design, anti-dust, damp and shock proof for field test
RS-232/USB data upload port
PC software for measurement data analyzing and reporting
LCD indicators for battery charging and LD lasing status
NiMH rechargeable battery support 4 hours continuous operations
Low battery annunciator
CE, FCC, FDA certificates
1 meter drop test
Parameters:
mode(1) | S20A | M20A |
Dynamic range (dB) | 24/24 | 18/22 |
Fiber type | SM | MM |
Wavelength (±20nm) | 1310,1550 | 850,1300 |
Display type | color | |
Connection methods | Single-port | |
Source type | LD | |
interface | FC/PC(exchangeable SC, ST) | |
Distance range (Km) | 1.3,2.5,5,10,20,40, | 0.1,0.3,0.5,1.3,2.5,5,10; 0.1,0.3,0.5,1.3, |
Pulse width | 12ns,30ns,100ns,275n s,1µs,2.5µs,10µs,20µs | 12ns,30ns,100ns,275ns,1µs; 30ns,100ns,275ns,1µs,2.5µs |
Measurement time | 15s,30s,1min,2min,3min | |
Attenuation dead zone | 14m(5) | 20m(6) |
Event Dead zone | 3m(5) | 7m(6) |
Measurement resolution | ±(1 m + 5×10-5×distance + sampling interval) | |
Reflective resolution | ±4 dB | |
Data storage | 300 test curve | |
Communication interface | RS-232/USB | |
