PLC Alignment Equipment

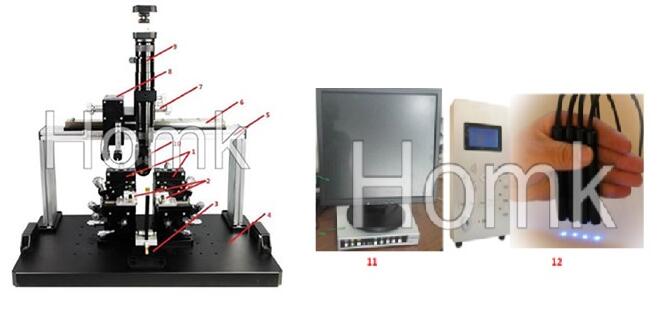

Description of PLC Alignment Equipment
| 1. Six dimensional alignment fixture Six axis adjustment precisely. | 7. Lens adjustment Providing the top and back end of the lens, physical movement up and down to achieve the desired Focus effect. |
| 2. FA fixture Holding fixed input terminal, and output terminal FA. | 8. UV fixture Fixed UV probe, adjust the probe before and after and the physical movement up and down.. |
| 3. Optical waveguide fixture Clamping fixed clip. | 9. Top end lens and CCD Zoom from the top lens and shot, adjust it parallel,observe the channel of chip. |
| 4. Digital Lab Integral frame fixing. | 10. Back end lens and CCD Zoom from the back lens and shot, adjust it parallel. |
| 5. Portal frame Integral inspect unit fixed. | 11. Monitor and Splitter Show the image from the top and back end of CCD observed simultaneously or separately. |
| 6. Long stroke lead rail Providing long stroke displacement observed unit. | 12. UV-Curing Source UV Curing after alignment. |
