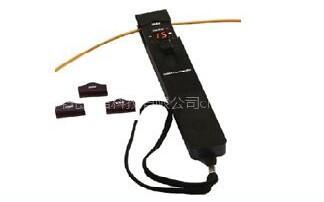

Optical Fiber Identifier(HK-601)
Optical Fiber Identifier is an essential instrument for the installation and maintenance of optical fiber projects. Our the Optical Fiber Identifier can easily detect any spot of SM fiber cables. The Optical Fiber Identifier through inserting a 1310 or 1550 modulated signal into the fiber, Optical Fiber Identifier is used to indicate the direction of the transmitting signals, find and locate the specific fiber without interrupting the current work during the installation, cabling and maintenance.
Features
Compact size, universal connector and Metal material
Efficient identification without interrupting the current work.
H0.25 to test bare fibers, ribbon and H0.9/H2.0/H3.0
Display the direction and level of the transmitting signal
Beep prompt function
Application
Telecom Projects
Optical Fiber CATV
Generic cabling system
Production and research of optical components
| Type | HK-601 |
| Identified Wavelength Range | 800-1700 nm |
| Detector Type | Ø 1mm InGaAs 2pcs |
| Identified Signal Type | CW, 270Hz, 1kHz, 2kHz |
| Detection sensitivity | -40dBm |
| Adapter Type | H 0.9/0.25 for bare fiber; H 2.0/3.0 for pigtail |
| Insertion Loss | H 0.25-H 0.9: 0.1dB |
| H 2.0-H 2.5: 0.5dB | |
| H 2.5-H3.0: 1.0 dB | |
| Signal Direction | Left & Right LED |
| Signal Intensity | 3 Levels of signal intensity |
| Power Supply | AAA 1.5V(2pcs batteries) |
| Operating Temperature | -10-+50º C |
| Storage Temperature | -20-+70º C |
| Weight(g) | 210 |
| Dimension (mm) | 200*30*27mm |
