OTDR (S20A)

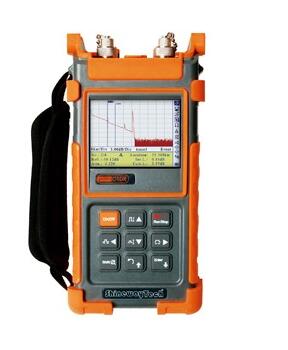

The OTDR /N series OTDR supports averaging and real-time tests featuring compact design, excellent stability, user-friendliness and cost-effectiveness. This OTDR is a variety of models are available for singlemode/multimode fibers and LAN/WAN/FTTX applications, with"tracemanager"software. You can save and transfer test data from OTDR to PC for further analysis, reporting and printing.
OTDR S20A Features
1. Overall fiber applications: Single&Multi mode.
2. Dynamic range: Up to 45dB
3. FTTX in-service test/test through 1*64 splitter. Model S16C/N&S20C/X(1625NM with filter).
4. Splitter &fiber end identifiable.
5. Value added 650nm VFL
6. Hotkeys: Easiest operation in the world, push-and-test.
7. Long lasting power: 8hour continuous operation with one charge.
8. Quick startup: <5 senda
9. Connectivity: USB&RS232
10. Large internal memory: 1000 records
11. Bellcore file format(sor)
12. Languages: EN/DE/FR/ES/PT/RU/KR/VN/CN
13. Lightweight: 1kg(2.2lbs)
14. OTDR safe and solid: CE FCC FDA&2M drop test
OTDR S20A tracemanager sof2tware
"Trace manager"software can display, analyze and edit trace files, generate and print comprehensive test and analysis report invarious forms.
Trace viewing, events analysis
Multi traces comparison
Batch editing and flexible printing
Bidirectional testing
Parameters:
mode(1) | S20A | M20A |
Dynamic range (dB) | 24/24 | 18/22 |
Fiber type | SM | MM |
Wavelength (±20nm) | 1310,1550 | 850,1300 |
Display type | color | |
Connection methods | Single-port | |
Source type | LD | |
interface | FC/PC(exchangeable SC, ST) | |
Distance range (Km) | 1.3,2.5,5,10,20,40, | 0.1,0.3,0.5,1.3,2.5,5,10; 0.1,0.3,0.5,1.3, |
Pulse width | 12ns,30ns,100ns,275n s,1µs,2.5µs,10µs,20µs | 12ns,30ns,100ns,275ns,1µs; 30ns,100ns,275ns,1µs,2.5µs |
Measurement time | 15s,30s,1min,2min,3min | |
Attenuation dead zone | 14m(5) | 20m(6) |
Event Dead zone | 3m(5) | 7m(6) |
Measurement resolution | ±(1 m + 5×10-5×distance + sampling interval) | |
Reflective resolution | ±4 dB | |
Data storage | 300 test curve | |
Communication interface | RS-232/USB | |
Power supply | Dual power supply :NiMH rechargeable battery/ AC adapter |
working life | continuous operation ≥ 4 hours standby time ≥ 20 hour |
Operating system | 0°C ~ 50°C |
Storage temperature | -20°C ~ 70°C |
Humidity | 0~95% no condensation |
Weight | 870g (1.9 lbs) |
dimension (H×W×T) | 196×100×60mm (7.7×3.9×2.4 in |
