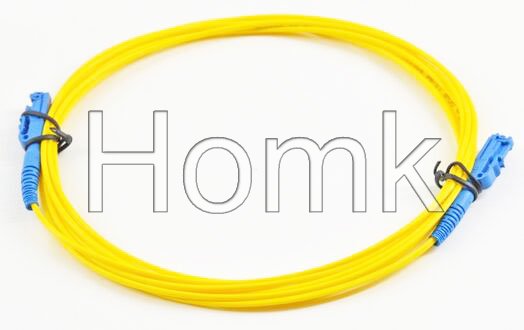

LX.5/UPC SM SX Fiber Optic Patch Cord
Product description Fiber Optic Pigtail is used to interconnect Transmission equipment to the Fiber optic patch panel. The Pigtail made by SAILING supports longer distance with lower loss for gigabit Ethernet, Specifications 1. Insertion loss:(Single-mode)PC≤0.3dB,UPC≤0.2dB APC≤0.2dB (Multi- mode):PC≤0.2dB 2. Return loss:PC≥45dB,UPC≥50dB APC≥65dB 3. Durability(1000times):≤0.2dB 4. Temperature range:-40 --- +80 Performance Advantages 1. Compliance with the standard of IEC and YD-T826/1996 2. High return loss and Low insertion loss 3. Good reliability& stability 4. Three types:PC/UPC/APC 5. Simplex and Duplex cable 6. Cable diameter:Φ0.9/Φ2/Φ3 Application 1. Telecommunication Networks 2. Test Equipment 3. Local Area Network 4. CATV Technology parameter Style Single-model UPC Single-model APC Multi-model PC Insert loss (dB) ≤0.20 Max insert loss(dB) ≤0.30 Repeatability(dB) ≤0.10 Return loss (dB) ≥50 ≥60 ≥35 Operating temperature -20-+60 centigrade Storage temperature -40-+85 centigrade
fiber channeland internet protocol applications. It is Specifically designed for use with today's narrower aperture components.
