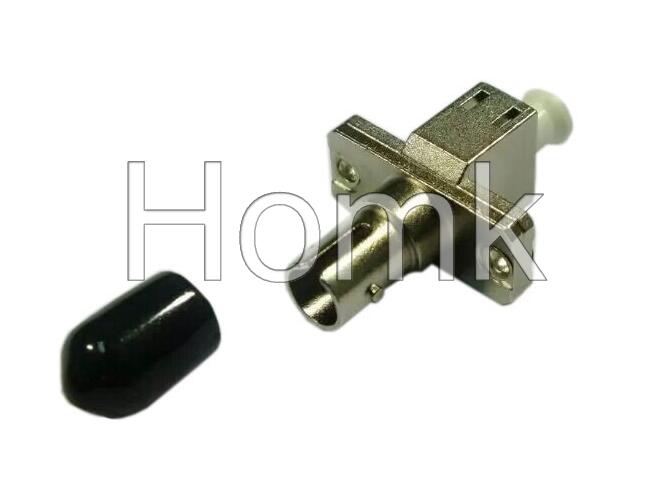

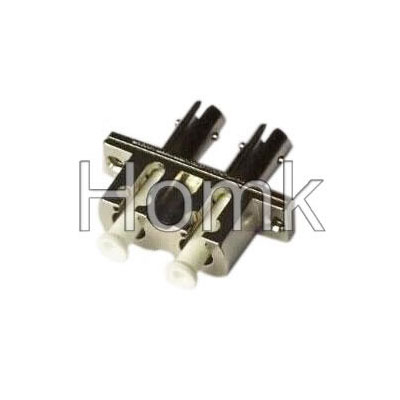

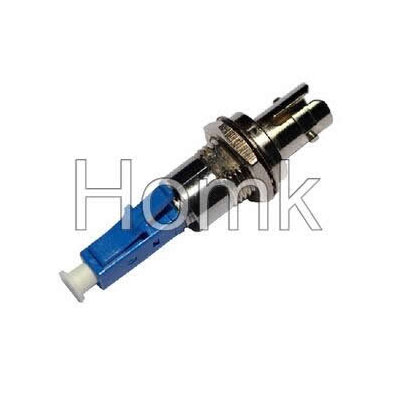

LC-ST Fiber Adapter LC-ST Fiber Optic Adapter, LC Fiber Optic Adapter, FC Fiber Optic Adapter, ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter, E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter Features: Good inerchangeability Applicable standard: IEC 61754-13 Complete Hybrid adapter Technical Standard: Insertion Loss ≤0.2dB Retentiveness 200-600g Mating Durability1000 times≤ 0.2dB Exchangeability: < 0.2dB Salt Spray: ≤ 0.2dB Sleeve material: ceramic / metal Temperature Rang -40 to +85 SPECIFICATIONS (Hybrid type adapter)
Environmentally Stable and Reliable
Accurate Size
Excellent Return LossITEM PARAMETER Applicative adapter type SC,LC,FC,ST,MU,D4,DIN Fiber mode Single mode Multi-mode Adapter color Blue, green, metal Beige, metal Test wavelength 1310nm, 1550nm 850nm, 1300nm Insertion Loss typical≤0.15dB,Max≤0.20dB typical≤0.15dB,Max≤0.20dB Repeatability ≤0.10dB Interchangeability ≤0.20dB Durability ≤0.20dB Max change,1000 mating Channels Simplex,Duplex,4channels Body material Plastic or metal Sleeve material Ceramic(ZrO2) or Customized Operating Temperature -20ºC to +70ºC Storage Temperature -40ºC to +85ºC
