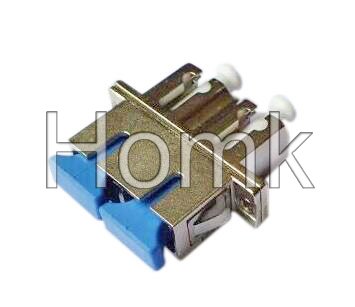

LC-SC Fiber Adapter
Product Description
BRIEF INTRODUCTION
Homk provides kinds of Hybrid Adapter, plastic, semi-metal, metal type housing available.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN
SPECIFICATIONS (Hybrid type adapter) ITEM PARAMETER Applicative adapter type SC,LC,FC,ST,MU,D4,DIN Fiber mode Single mode Multi-mode Adapter color Blue, green, metal Beige, metal Test wavelength 1310nm, 1550nm 850nm, 1300nm Insertion Loss typical≤0.15dB,Max≤0.20dB typical≤0.15dB,Max≤0.20dB Repeatability ≤0.10dB Interchangeability ≤0.20dB Durability ≤0.20dB Max change,1000 mating Channels Simplex,Duplex,4channels Body material Plastic or metal Sleeve material Ceramic(ZrO2) or Customized Operating Temperature -20ºC to +70ºC Storage Temperature -40ºC to +85ºC
