IFS-15M+ Koera INNO Fiber Fusion Splicer

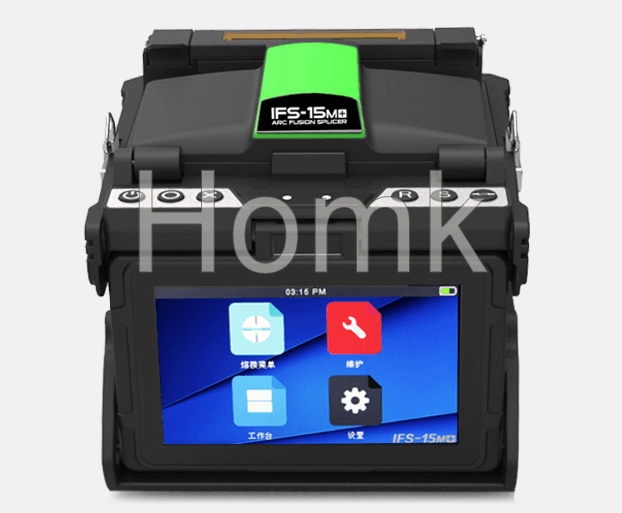

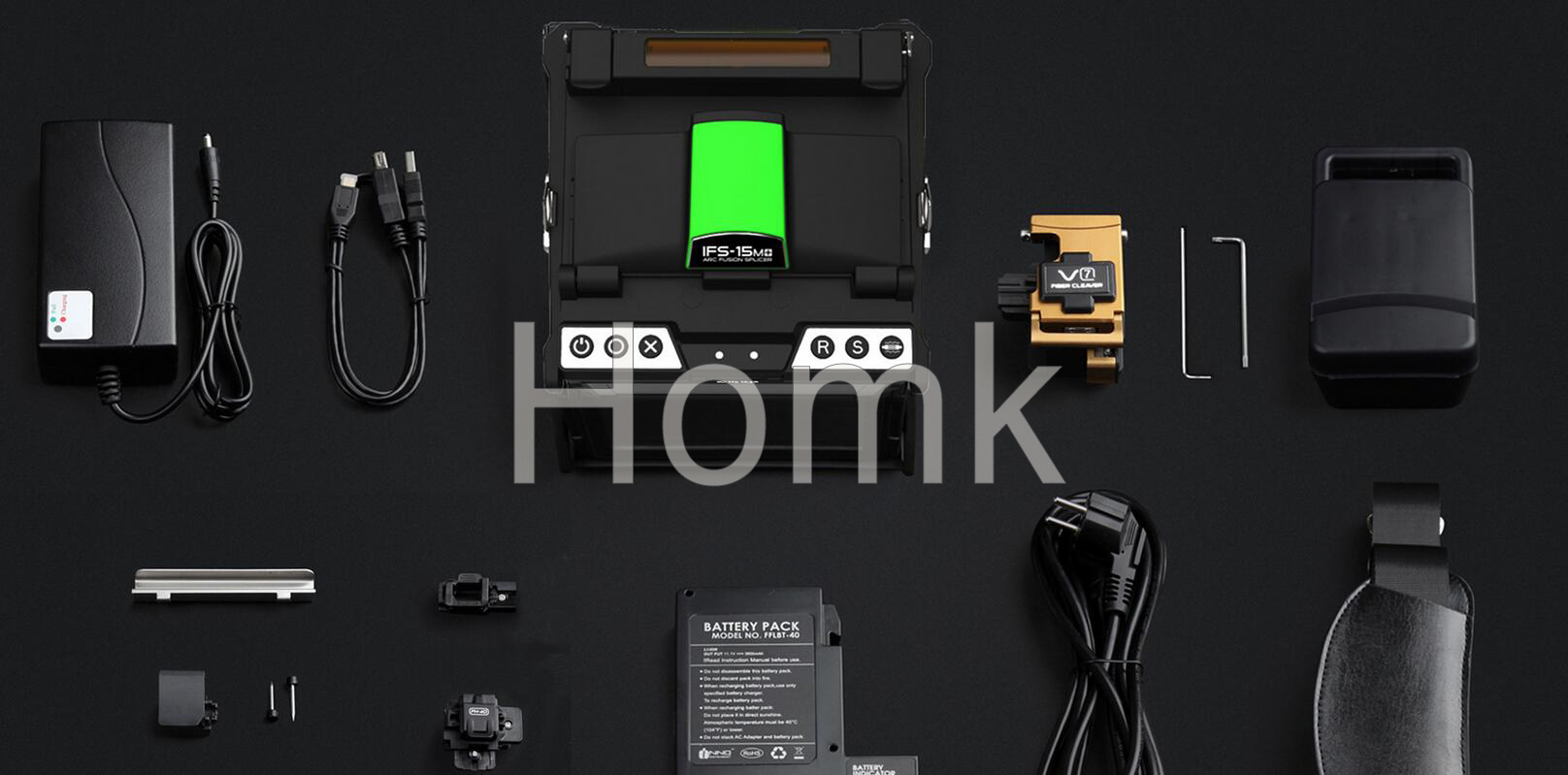

The IFS-15M+, a compact cladding alignment fiber fusion splicer, is one of the most reliable fusion splicers on the market.

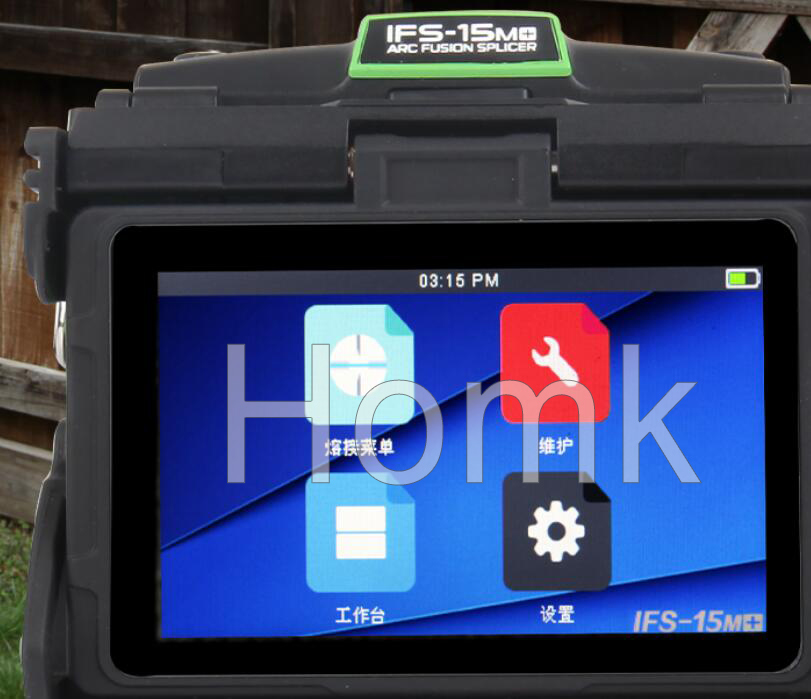

The IFS-15M+ has a 4.3-inch 800x480 high-resolution LCD capacitive touch screen for easy and intuitive GUI graphical interface, providing users with a clear and enlarged core picture.
The IFS-15M+ has a 4.3-inch 800x480 high-resolution LCD capacitive touch screen for easy and intuitive GUI graphical interface, providing users with a clear and enlarged core picture.
Display and interface
The core picture is extremely clear
4.3 inch 800x480 HD liquid crystal capacitive touch screen
Maximum 330 times magnification
Friendly intelligent operation interface
The core picture is extremely clear
4.3 inch 800x480 HD liquid crystal capacitive touch screen
Maximum 330 times magnification
Friendly intelligent operation interface
IFS-15M+ technical parameters
IFS-15M+
size
120H x 120W x 135mm
weight
1.7KG (with battery)
1.3KG (without battery)
display
Touch screen / button
Applicable core number
Single core
Welding time
6 seconds / 7 seconds
heating time
16 seconds
Typical heating time
Fiber amplification and display
X
Y
XY
X/Y
Double click on 330x to enlarge
Applicable fiber type
SM
(ITU-T G.652 & G.657)
MM
(ITU-T G.651)
DS
(ITU-T G.653)
NZDS
(ITU-T G.655)
illumination
3 LED white lights
Fusion result storage
2000 latest storage records and 2000 latest fusion screens
port
Micro HDMI
Applicable fiber diameter
0.25~3.0mm/home optical cable (using VFH-40 fiber clamp)
Fiber placement and cutting length
Coating layer: 0.125~1mm/cutting length: 8~16mm
Typical splice loss
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB /NZDS: 0.04dB / G.657: 0.02dB (ITU-T standard is measured by shearing method)
Return loss
>>60dB
Splice loss estimate
Have
Fusion length
10~60mm
Pull test
1.96~2.25N
Operating condition
Altitude: 0~5000 meters,
Relative humidity 0~95%,
-10~50°C, 15m/s maximum wind speed
Storage condition
Relative humidity 0~95%, -40~80°C
power input
AC Input 100-240V, DC Input 9-14V
Battery welding and heating times
3800mAh battery capacity, 160 times of typical fusion heating
Electrode life
3500 discharges (with a special cleaner can extend the service life of more than 20%)
IFS-15M+
size
120H x 120W x 135mm
weight
1.7KG (with battery)
1.3KG (without battery)
display
Touch screen / button
Applicable core number
Single core
Welding time
6 seconds / 7 seconds
heating time
16 seconds
Typical heating time
Fiber amplification and display
X
Y
XY
X/Y
Double click on 330x to enlarge
Applicable fiber type
SM
(ITU-T G.652 & G.657)
MM
(ITU-T G.651)
DS
(ITU-T G.653)
NZDS
(ITU-T G.655)
illumination
3 LED white lights
Fusion result storage
2000 latest storage records and 2000 latest fusion screens
port
Micro HDMI
Applicable fiber diameter
0.25~3.0mm/home optical cable (using VFH-40 fiber clamp)
Fiber placement and cutting length
Coating layer: 0.125~1mm/cutting length: 8~16mm
Typical splice loss
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB /NZDS: 0.04dB / G.657: 0.02dB (ITU-T standard is measured by shearing method)
Return loss
>>60dB
Splice loss estimate
Have
Fusion length
10~60mm
Pull test
1.96~2.25N
Operating condition
Altitude: 0~5000 meters,
Relative humidity 0~95%,
-10~50°C, 15m/s maximum wind speed
Storage condition
Relative humidity 0~95%, -40~80°C
power input
AC Input 100-240V, DC Input 9-14V
Battery welding and heating times
3800mAh battery capacity, 160 times of typical fusion heating
Electrode life
3500 discharges (with a special cleaner can extend the service life of more than 20%)
