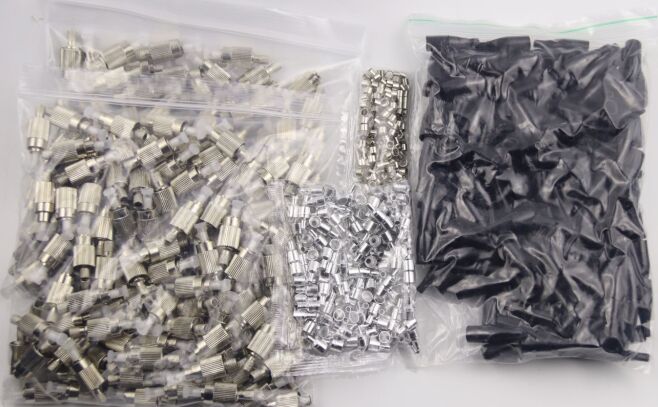

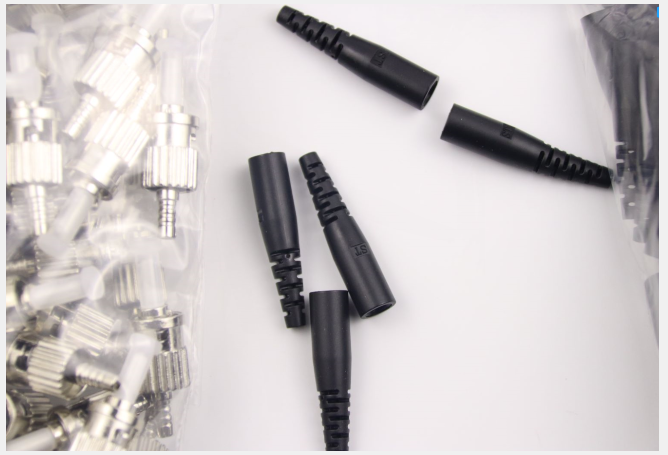

Fiber Connector Kit FCPC,2.0&3.0mm with short boot
Specifications
Insertion Loss; Single mode<=0.2dB & Multimode<=0.3dB
Return Loss; PC>=50dB, UPC>=55dB & APC>=65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature; -40 to 80
Ferrule Hole Sizes;
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
AVAILABILITY
-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.
-Clips are available for SC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
GST Company with own injection workshop, press workshop, specializing in fiber optic connector and connector kits produce and export.
Main type
SC/PC, SC/APC, FC/PC, LC/PC, ST/PC, FC/APC
3.0MM, 2.0MM, 0.9MM,
Singlemode, multimode available
Item | LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc | |||||
Type | Multi-Mode | Single-Mode | ||||
Light Characteristic | Operating Wavelength | 850nm& 1300nm | 1310nm & 1550nm | |||
Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB | ||||
Mechanical Testing | Repeatability | ≤ 0.2dB | ||||
Exchange | ≤ 0.2dB | |||||
Durability | > 1000 (Times) | |||||
Temperature | Storage Temperature | 25 ~+85 | ||||
Operating Temperature | 25 ~+85 | |||||
Length, Color, Out-Diameter, Fiber counts | According to the customers' requirement | |||||
