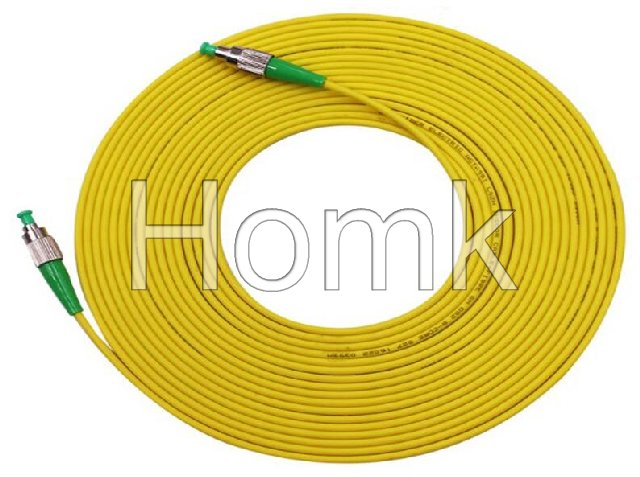

FCAPC-FCAPC 3m Fiber Optic Patch Cord
Features:
1.Low insertion loss and back reflection loss fiber optic patch cord
2.Optical fiber patch cord with good echangeability
3.Connectors with good durability
4.High temperature stability fiber optic patch cord.
5.Standard: Telcordia GR-326-CORE
Specification:
Mode | SM | MM | |
Polish | UPC | APC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strengh | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
