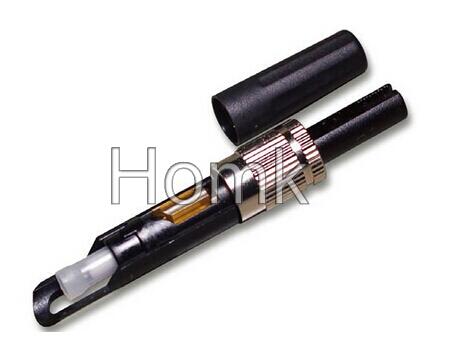

FC Fiber Optic Fast Connector
The fiber optic Quick Assembly Connector is a revolutionary field installable optical fiber connector that no need epoxy and polishing. The unique design incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.
Quick Assembly Connector Features1. Field installable,cost effective and user friendly
2. Completely mechanical splice, No Electricity required
3. Can be assembled in the field within 2 minutes,No consumable materials, not need to maintain.
4. Easy and fast to assemble,high success rate.Reliable and superior optical performance.
5. May open repeated, raise operation successful ratio at site
Quick Assembly Connector Application
1. Inside or outside building
2. FTTH/FTTP
3 Security equipment
| Applicable fiber | SM | MM (50) | MM (62.5) | |
| Intermateability | SC (IEC61754-4) | |||
| Polishing | PC | PC | PC | |
| Operating temperature | -40 ~ +75º C | |||
| Insertion Loss (against master plug) | Typical ≤ 0.2dB | Typical ≤ 0.1dB | ||
| Return Loss (against master plug) | Typical ≥ 55 dB | Typical ≥ 35 dB | ||
