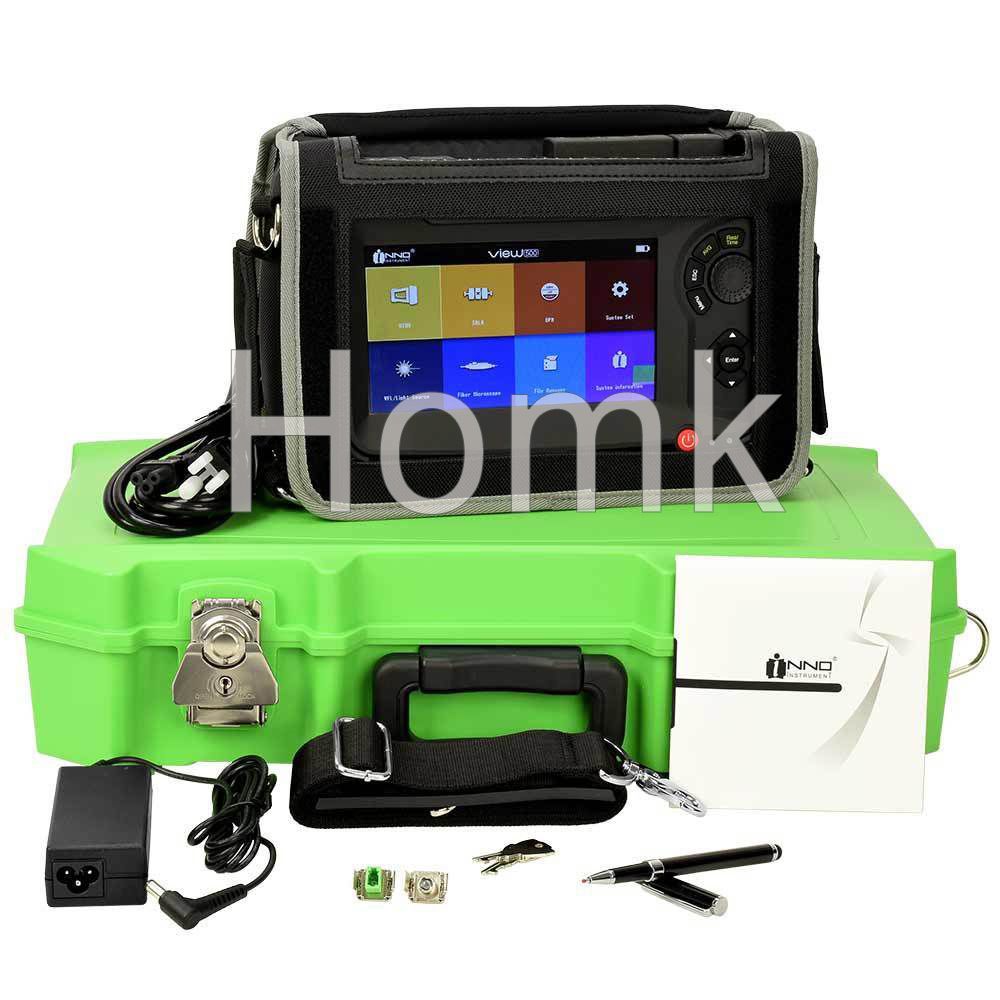

The VIEW500 OTDR from Inno Instrument is used for installing and maintaining fiber optic cables, it features high precision test capabilities, fast response time and a user-friendly operation with the multi-point capacitive touch screen. This smart machine also offers accurate and fast test results and creates a report automatically. The VIEW500 is equipped with an industrial grade CPU for creating and storing test results.

SOLA (Smart Optical Link Analyzer)

7" Touch Screen with Smart GUI

8GB Internal Storage with Internal SD Card & External USB Memory

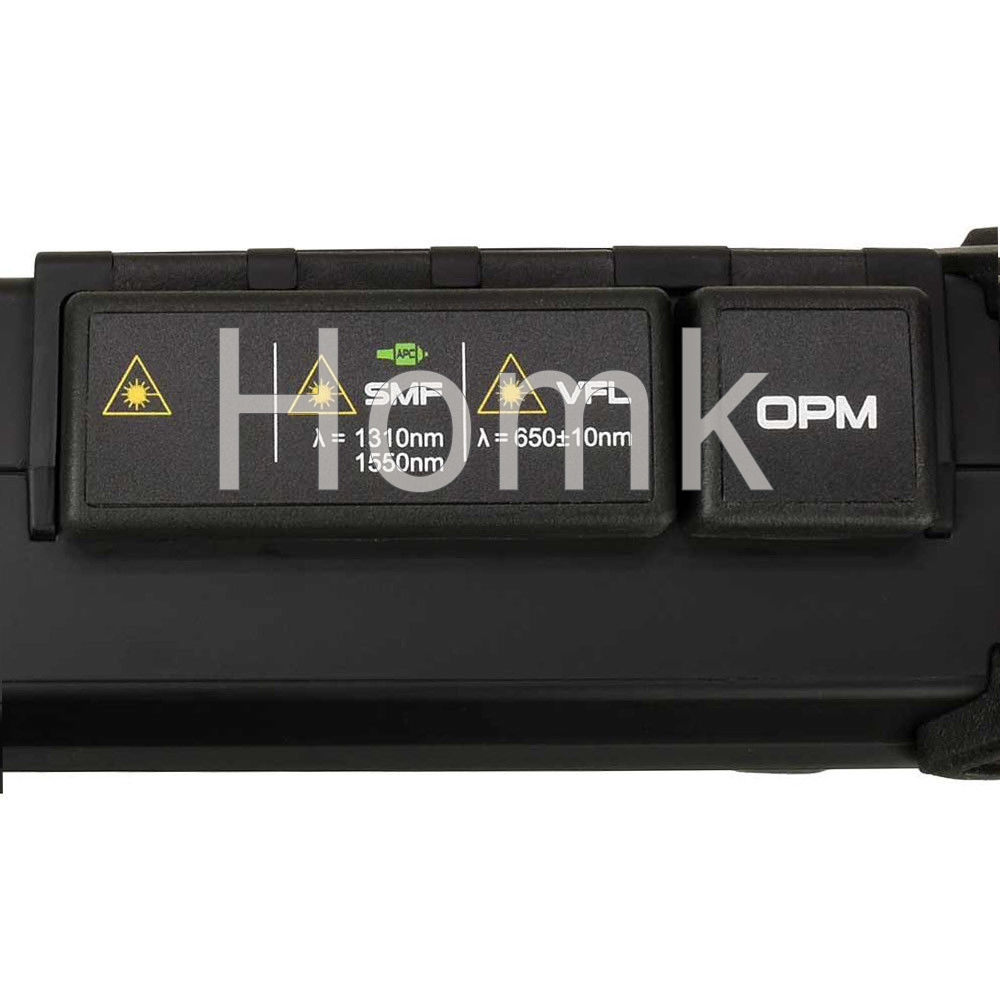

Built-In VFL, Light Source and OPM

Fast Booting Time

Ultra-High Capacity Battery

Model: VIEW500

Display: 7 inches, High Brightness TFT LCD, resolution of 800×480

Distance unit: m / km / mile / ft

Dynamic range: 35dB / 33dB (1310nm / 1550nm)

Measurement range (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km

Measurement range (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile

Pulse width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs

Dead zone (Event/Attn./PON): 0.8m / 4m / 40m

Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)

Linearity: 0.03dB

Sampling points: 160,000 points

Refractive index: 1.000000 - 2.000000 (step: 0.000001)

Splitting ratio: Up to 1:64 splitter

Resolution: 0.04m ~ 10.24m

Loss readout resolution: 0.001dB

Battery capacity: Operating Time : Up to 12hours

File format: SOR(Telcordia), BMP, JPG

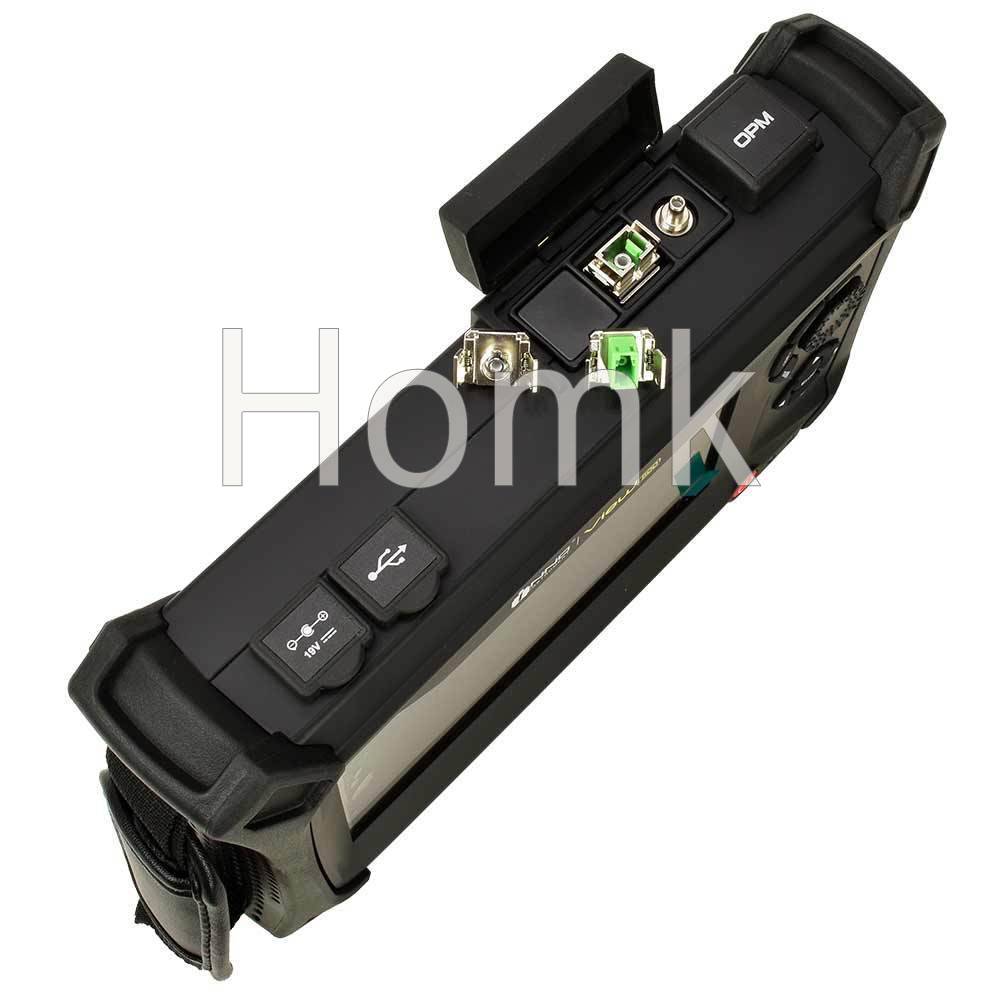

External connection: USB 2.0

Compatible connector: APC(FC, SC, LC), UPC(FC, SC, LC, ST)

Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A

VFL port: 2.5mm ferrule type

VFL wavelength: 650nm ±10nm

VFL distance: Up to 15km

VFL output power: 20mW

Light source: Operating wavelength: 1310nm / 1550 nm ±10nm

Light source output power: -5dBm

OPM port: SC, FC, ST

Wavelength calibration[OPM]: 850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm

Power range (OPM): -70 to +6dBm (Accuracy: 0.01dB)

Dimension: 7.08H x 10.70W x 2.44D inches 272mm

Dimension excluding rubber bumper: 180H x 272W x 62D mm

Weight: 4.19pounds (1.90kg with battery)

Operating conditions: -10~50 celcius

Storage conditions: -20~60 celcius

Relative humidity: 0~95% (Noncondensing)
