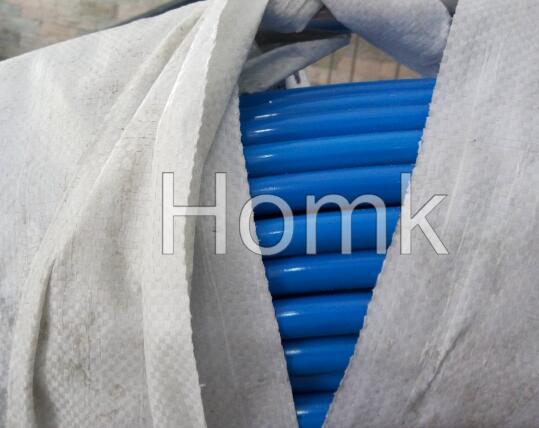

Blue Color Fiberglass Duct Rodder
Duct rodder Feature:
1.Great rigidity and strength
2. Light & easy to use
3. Excellent flexibility force
4. Quickly delivery
5. Safe, non conductive and no kink
6. Anticorrosion, good elasticity, long working life
Duct rodder Structure:
1. Fiber glass rod inner: Extruded by fiber glass and unsaturated polyester resin at high temperature.
2. Fiber glass rod outer: Medium density ABS resin for the insulating and jacketing of cables.
3. Assembly: metal frame sprayed paint; rubber wheels assembly for easy transportation; Guide rollers and
the right parts for rotary coupling; parking brake for the flexible rod. 4. Copper wire inside is optional which is for tracing easily.
5. Rolling bearing cage for mobility will be light and easy to use in the field. 6. Feed device allows rod to feed out or be back
with easy push or pull of rod
Technical Data of Duct rodder | ||
Specification | Rod Diameter (mm) | Φ4,Φ5,Φ6,Φ8, Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30m,50m,60m,80m,100m,120m,150m,180m,200m,250m,300m,350m,400m,500m | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | |
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High Density polyethylene coating | |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
Physical Property | Fiber glass content | 75-80% |
Density | >1.9gr/cm3 | |
Working environment | -40°C to +80°C | |
Minimum Pulling strength | 4000N +/-5% | |
Consistency of rod | 137gr/m | |
Flexural Modulus | >46.500Mpa | |
Elongation at break | 2.5-3% | |
Min Bending Radius | 388mm | |
