Details
Applicable in the straight through or branch connection of indoor optical cable
Available for the distribution and terminal connection of various kinds of optical fiber system
Fit for wall mounted,especially for mini-network terminal distribution.
Wall-Mounted Terminal Box
Order Guide

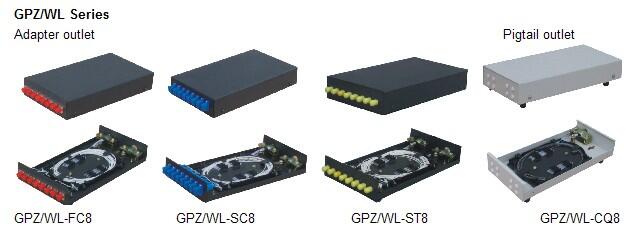

Type | Size(mm) | Max capacity | Mark |
GPZ/WL-FC8 | 260X140X40 | 8 cores | cold rolled steel sheet,with electrostatic spraying,8 outlets for adaptors |
GPZ/WL-SC8 | 260X140X40 | 8 cores | |
GPZ/WL-ST8 | 300X140X40 | 8 cores | |
GPZ/WL-CQ8 | 260X120X40 | 8 cores | 8 outlets for fiber pigtail |
Packing Information
Type | Net size (mm) | Net weight (kg) | Packing size (mm) | Packing weight(kg) | No./carton pcs |
GPZ/WL | 320X150X60mm | 1.05 | 630x330x340mm | 21 | 20 |
GPZ/WL-CQ | 320X150X60mm | 1.00 | 630x330x340mm | 21 | 20 |
