Wall-Mounted Terminal Box

Details

Wall-Mounted Terminal Box


  • Applicable in the straight through or branch connection of indoor optical cable

  • Available for the distribution and terminal connection of various kinds of optical fiber system

  • Fit for wall mounted

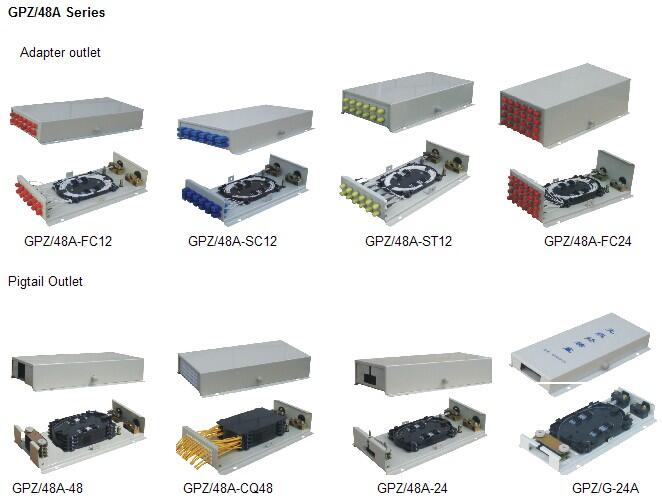

Order Guide

Type
Size(mm)
Max capacity(core)
Remark
GPZ/48A-FC12
330x183x70
12
The body is made of cold rolled steel sheet,with electrostatic spraying,12 outlets for adaptors
GPZ/48A-SC12
330x183x70
12
GPZ/48A-ST12
330x183x70
12
GPZ/48A-FC24
330x183x100
24
GPZ/48A-CQ48
330x183x70
48
The body is made of cold rolled steel sheet with electrostatic spraying,fiber pigtail outlet
GPZ/G-24A
330x120x46
24

Packing information
Type

Net size
(mm)

Net weight(kg)

Packing size
(mm)
Packing weight (kg)

No./carton
pcs
GPZ/48A
360X193X85mm
1.85
430x370x470mm
20.0
10
GPZ/48A-FC24
360X193X115mm
2.05
430x370x470mm
18.0
8
GPZ/G
320x150x60mm
1.05
630x330x340mm
20.0
20
