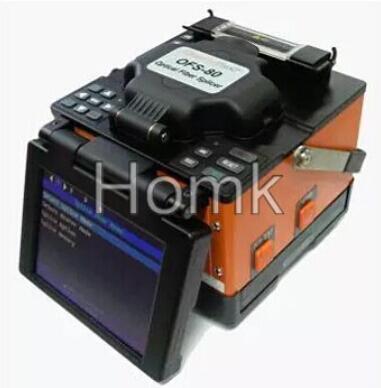

US fusion splicer OFS-80

1, Auto core alignment
2.Excellent splicing result
3.Applicable to SM/MM fibers
4.Interchangeable fiber holders (250mm/900mm/Bow-type drop cable) and Splice-on connector (SOC) adapter
5.Both X and Y axis display
6.Fiber core can be display clearly
7.Inner light to set fiber in dark environment
8.uto check fiber end-face & splice loss calculation
9.9 seconds splice time and 30 seconds heat time / 3 hours fast recharge
10.60 preset/user-definable splicing programs
11.Temperature and atmospheric pressure compensation function
12.Arc power automatic optimization
13.Built-in event counter with electrode change indication
14.Splicing pause function and automatically resume when wind shield close
15.Simple operation menu
16.Exterior operation capability at rugged conditions
17.Sturdy weatherproof cover & Max. wind velocity of 15m/s
18.Easy cleaning and maintenance
19.Rigid multi-functional transporting case with transportation belt

1. Interchangeable fiber holders & Splice-on connector (SOC) adapter



   specification:

   Model	OFS-80A	OFS-80E
   Application	General splicing	FTTx application 250/900mm/Bow-type compatible Splice-on connector (SOC) adapter
   Applicable Fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), ITU-T G.657
   Fiber Cleaved Length	8~16mm (Coating diameter: 250µm) 16mm (Coating diameter: 250 ~ 1000µm)
   Cladding Diameter	80 ~150µm
   Coating Diameter	100 ~ 1000μm
   Fiber Aligning Method	Auto core alignment
   Return Loss	>60dB
   Actual Average Splice Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
   Splicing Mode	60 preset/user-definable modes
   Splicing Time	Typical 9 sec, with standard SM fiber
   Protection Sleeve Length	60mm, 40mm and a series of micro sleeves
   Storage Of Splice Result	5000 results
   Tension Test	2N
   Fiber Display/ Magnification	240X(X and Y view)
   Tube Heating Mode	Heating time adjustable: 20 – 60 sec
   Tube Heating Time	Typical 30 seconds
   Splicing/Heating Times	Typical 120 cycles (splicing/tube heat) with Li-battery only
   Display	5.7 inch color LCD monitor
   Connectivity	RS-232/USB
   Operating Condition	0 ~ 5000m above sea level; 0 to 95% RH; -10 to 50°C; Max. wind velocity of 15m/s
   Storage Condition	-20ºC to + 70ºC, 0 to 95% RH
   Power Supply	AC adapter (AC-input: 100-240V; DC-output:14.5-15V); Li-battery (6600mAh)
   Weight	3.15 Kg (including battery)
   Dimensions (H×W×T)	180x160x155mm

   Ordering Information Standard Package Includes:
