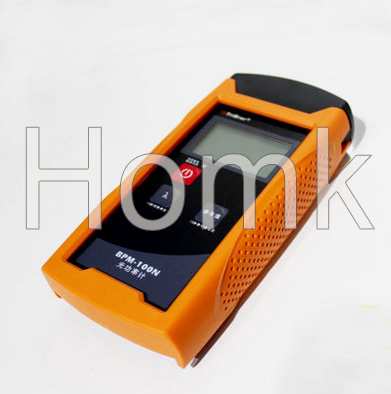

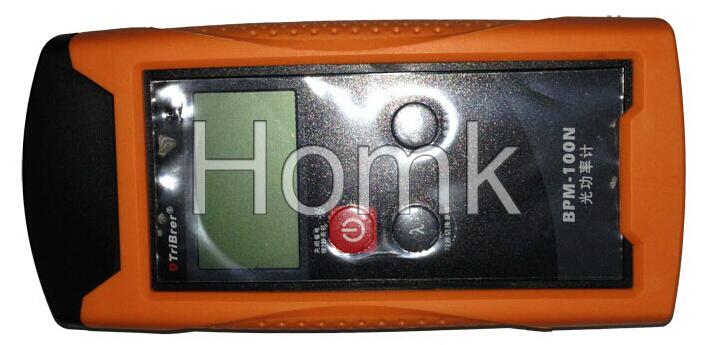

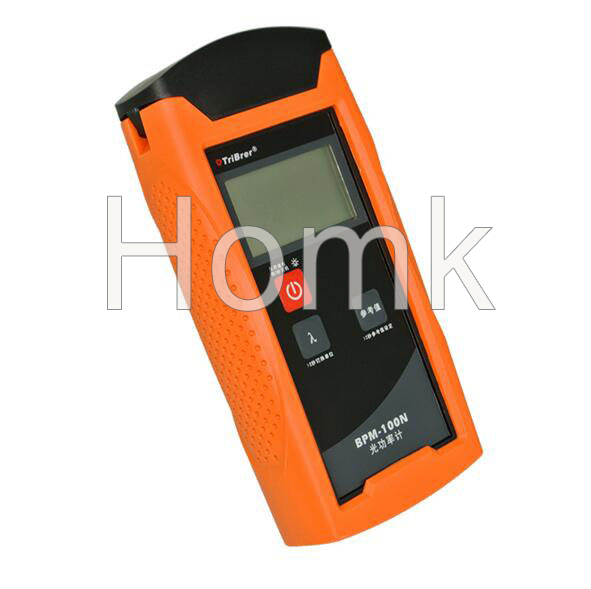

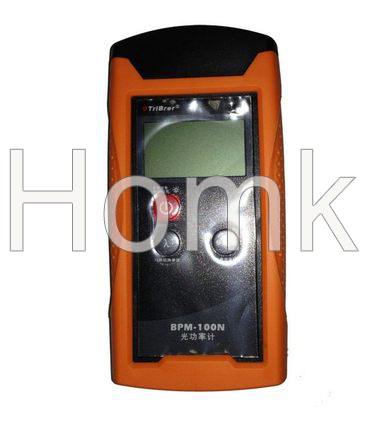

Tribrer BPM-100N Power Meter

Details

Tribrer BPM-100N Power Meter



1) High resolution: 0.01dB;

    Good accuracy:±0.2dB;

2) Insertion loss test in dB;

3) SM or MM applications;

4) FC/PC and 2.5mm universal connector;

5) 850/1300/1310/1490/1550/1625nm Calibrated CW wavelengths;

6) BPM100 is for telecom testing,

     BPM101 is for CATV testing;

7) Energy save mode: about 10 minutes no operation will cause the device automatic power off (can be cancelled);

8) Reference value storage;

9) Full energy can support above 100 hours operation;



Main Characteristic





BPM100N

BPM101N

Display Range

+10 ~ -70dBm

+26 ~ -50dBm

Accuracy *

± 0.2dB

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Resolution

0.01dB

Connecting Adapter

FC/PC & 2.5mm Universal

Reference Value storage

Yes

Automatic Power Off

No operation in 10 minutes (can be cancelled), Low battery energy

Battery Charge

Yes

Battery Life

Above 100 hours (1800mAH battery)

Storage Temperature

-20 -- +60 &deg;C, < 90%RH

Operating Temperature

-10 -- +50 &deg;C, < 90%RH

Power Supply

AA * 2 batteries or AC/DC power supply adapter

Size

160mm * 75mm * 32mm

Weight

About 180g



* at 20&plusmn;3&deg;C, CW, with FC connector, -10dBm

* For 850nm/1300nm, the Min. Power measurement is -60dBm@BPM100, -40dBm@BPM101

Accessories

Standard

Carrying bag

1

User&rsquo;s manual

1

Calibration certification

1

Optional

AC/DC adapter

1
