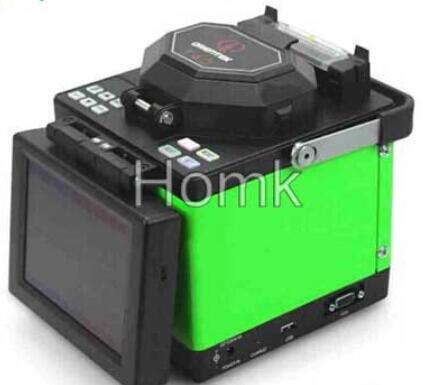

T40 Optical fiber Fusion Splicer
Hig High-resolution true color 5.7 inch LCD display
• The advanced core to core fiber profile alignment system(PAS)
• Real time calibrating system ,parameter needn’t be adjusted
• X/Y axes were displayed meanwhile, Magnification up to 304 times
• 8 seconds splicing time, 30 seconds Heat-Shrinking
• Battery capacity was display in real time, precisely
• Built-in high capacity battery, support 220 times splicing and heating, to meet one days’ work
• Long Electrode Lifetime, up to 4000 times
• The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
• Three Splicing modes: auto, half-auto, manual
• Built-in super high-brightness LED supply convenience for night work
• Auto calculate splicing loss
• Small bulk and light weight, only 2.8kg include battery
• 4000 results Storage
• USB data interface &VGA
• One button operation to finish results download or software update
• Close shield splice automatically, Close heater lid heat automatically
• One year Warranty
The T40 PAS Digital Core Alignment Fusion Splicer adopts advanced PAS (advanced core to core fiber profile alignment system)
with field engineer ergonomic friendly style,compact sized (include monitor, only 160x150x140 mm)
and Light Weight (include battery 2.6Kg), Fast (Splice Time: 8sec, tube heat time:30sec) .
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, Ideal tools for construction and maintenance of
fiber and cable in both field and laboratory applications. Support Chinese, English, Japanese, Germany, Spanish, Russian, Korea.
No. | Item | Quantity |
1 | Machine (T40) | 1 |
2 | Fiber Cleaver(T30) | 1 |
3 | Three-hole Fiber Stripper | 1 |
4 | Fusion Splice Protection Sleeves | 500 |
5 | Alcohol Bottle | 1 |
6 | AC Adaptor(602-120500D) | 1 |
7 | Kimwipes Lint-Wipers 280 wipers/box | 280pcs/1box |
8 | Battery Pack (T40bp-118) | 1 |
9 | Charger(602-126250W) | 1 |
10 | Spare Electrodes 1 Pair | 1 |
11 | Cooling Tray | 1 |
12 | Instruction CD | 1 |
13 | Quick Reference Guide | 1 |
14 | USB Flash Disk | 1 |
15 | Transit Case with Carrying Strap | 1 |
