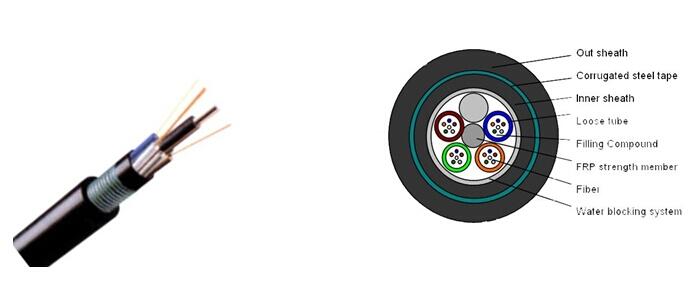

Stranded Non-metallic Armored and Double Sheath(GYFTY53)
Product Name:Outdoor Fiber Optic Cable
Model:Stranded Non-metallic Armored and Double Sheath GYFTY53
Outdoor Fiber Optic Cable Application:
☆.Outdoor Fiber Optic Cable adopted to Outdoor distribution.
☆.The Outdoor Fiber Optic Cable is suitable for aerial duct and buried method.
☆.Long distance and local area network communication.
Outdoor Fiber Optic Cable Characteristics:
☆.FRP strength.filler protect tube fiber.steel tape armord.
☆.Good ultra violet radiation resistant property.
☆.Double sheath .Good moisture-resistance.
| Outdoor Fiber Optic Cable Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 24 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 36 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 42 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 48 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 60 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 72 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| Outdoor Fiber Optic Cable Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
