Skycom BMU300 power meter

Details

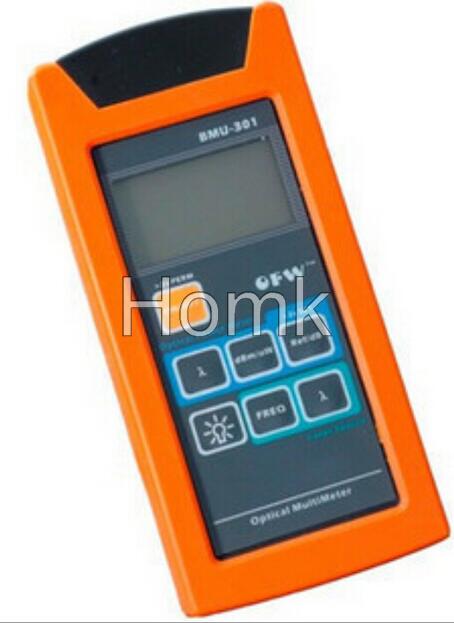

Skycom BMU300 Power Meter



1) Combine the power meter and laser source in one unit

2)  Wide dynamic range: Max to 76 dB;

     High resolution: 0.01dB;

     Good accuracy: ± 0.2dB;

3)  Can test the loss of the fiber;

4)  High stabilization of laser source;

5)  850nm, 1300nm, 1310nm, 1490nm,

     1550nm, 1625nm test point;

6)  BMU300 is for telecom test,

     BMU301 is for CATV test;

7)  Energy save mode: about 10 minutes

     no operation will cause the device auto power off (can be cancelled);

8)  Reference value set for each wave;



Feature





BMU300

BMU301



Laser Source

Wavelength (nm)

1310 & 1550

Output Power

> -6.0dBm

Modulation

270Hz, 1KHz, 2KHz

Connector

FC/PC



Power Meter

Measuring Range

+6 ~ -70dBm

+26 ~ -50dBm

Accuracy *

± 0.2dB

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Tone Detector**

+0 ~ - 40 dBm

+20 ~ - 20 dBm

Reference Value Set

Yes

Connecting Adaptor

FC/PC & Universal

Auto Power Off

No operation in 10 minutes (can be cancelled), Low battery energy

Battery Charge

Yes

Power Supply

2 * AA batteries or AC/DC adapter

Size

160mm * 75mm * 32mm

Weight

About 190g
