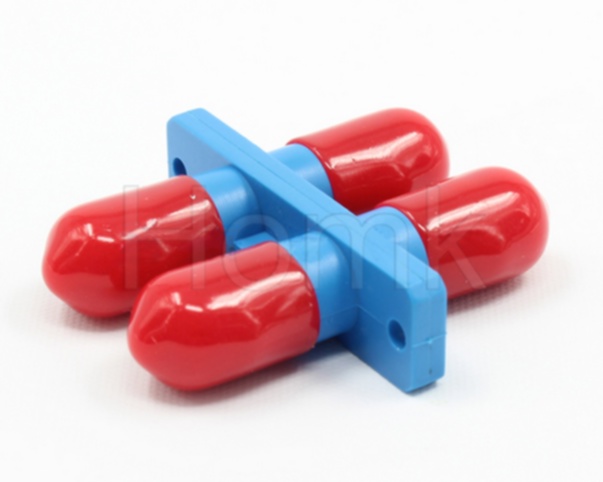

ST-ST Duplex Fiber Adapter With Red Cap

Details

ST-ST Duplex Fiber Adapter With Red Cap

Specifications

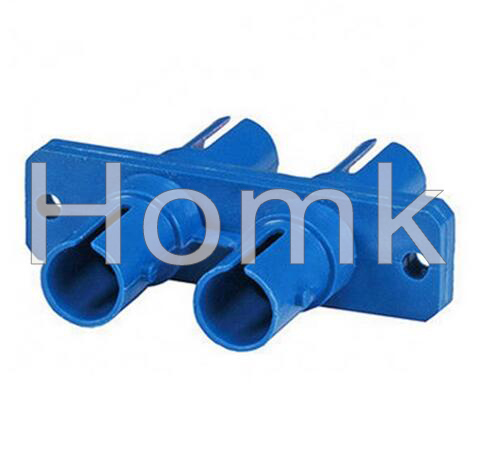

ST-ST Adapter
1.Good commpatibility
2.Precision-machined
3.High reliability
4.Timely delivery & Small orders accepted

Features

* Type : ST

* Simplex and Duplex

* Single mode and Multimode,APC

* Zirconia sleeves or Phosphor bronze sleeves

* Available without flange or with flange for duplex,saving panel space

* Meet JIS5974 and Bellcore-GR-910-CORE Compliance

* Compliant with IEC874-14 & IEC874-19 and NTT standard compatible

* All parts compliant with RoHS



Application

* Telecommunication

* CATV

* LAN&WAN

* HTTP



Parameter
ModeS.M (Zroz)M.M (P.B)
Insertion Loss≤0.2 dB≤0.3 dB
Mating Durability(500 times)≤0.2 dB
Operating Temperature(°C)-40°C~+75°C



Parameter
Return Loss≥45 dB ( SPC ) , ≥55 dB ( UPC ),≥65 dB ( APC )
Attenuation Tolerance (dB)1-10dB<&plusmn;1.0dB
11-25dB<&plusmn;10%
1-10dB<&plusmn;0.5dB
11-25dB<&plusmn;5%
Operating Wavelength (nm)1310&plusmn;10nm
1550&plusmn;10nm
1310 and 1550&plusmn;10nm
Operating Temperature(&deg;C)-40&deg;C+~75&deg;C
