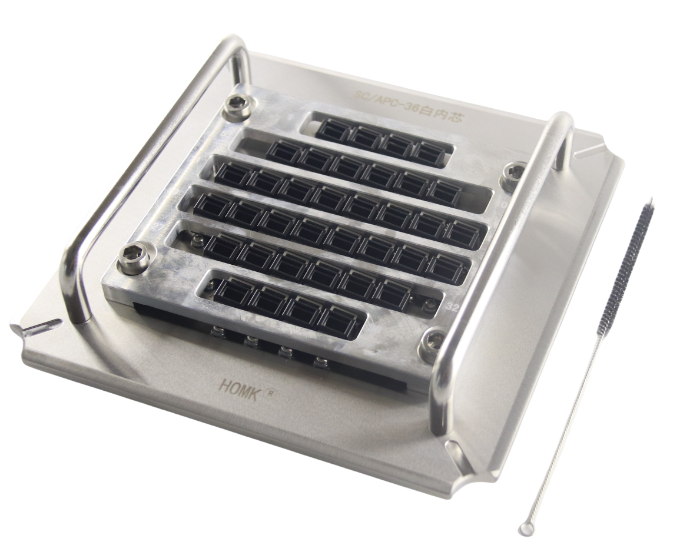

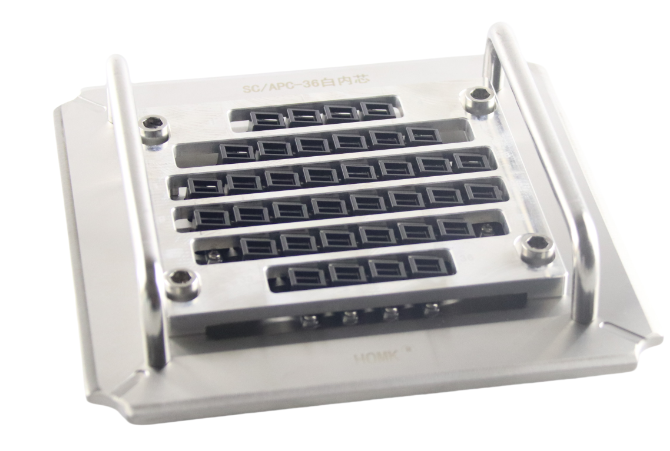

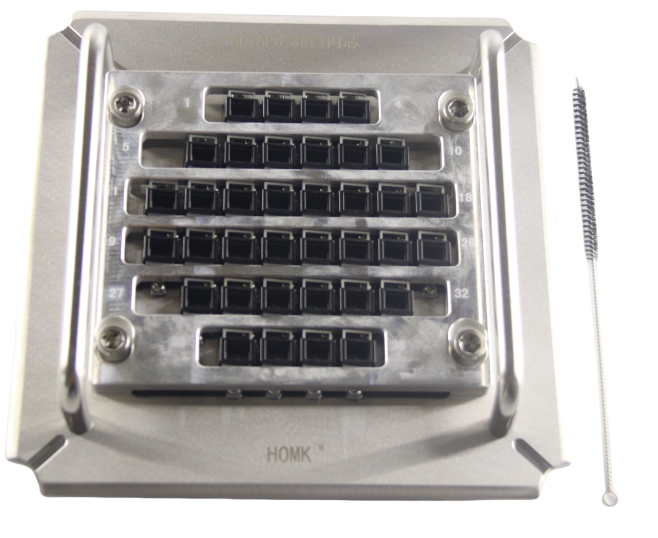

SCAPC Waterproof Patch Cord Fiber Polishing Fixture

The SC/APC-36 is IPC Structure, Independent compression of each connector. Polishing fixture pass rate with Interference> = 98%(100%  Typical, according to IEC), APPEX OFFET is within 26. This polishing  fixture is high stability and good surface quality.

The fixture using high quality steel with heated treat, the hardened steel S136 provide long service life. This polishing fixture can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according  to   the customer request.

1. It is used in four corners corners fiber polishing machine, to plishing connectors.

2. This jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. Each one can hold 36 connectors. It has high production efficiency.

4. The plugs  can be interchanged, extend polishing fixture's life.

5. It has good quality, high efficiency,

6. All kinds of polishing fixture can be customized according by customer requirment.
