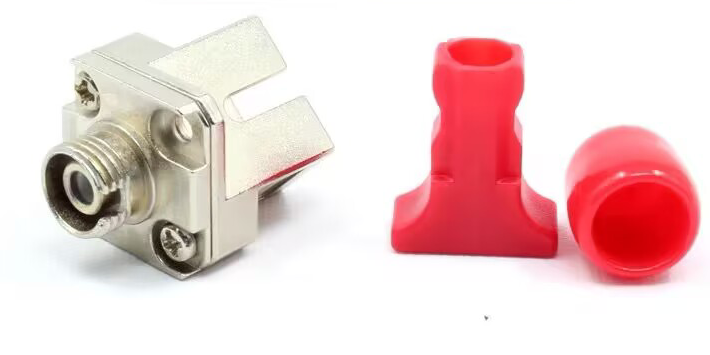

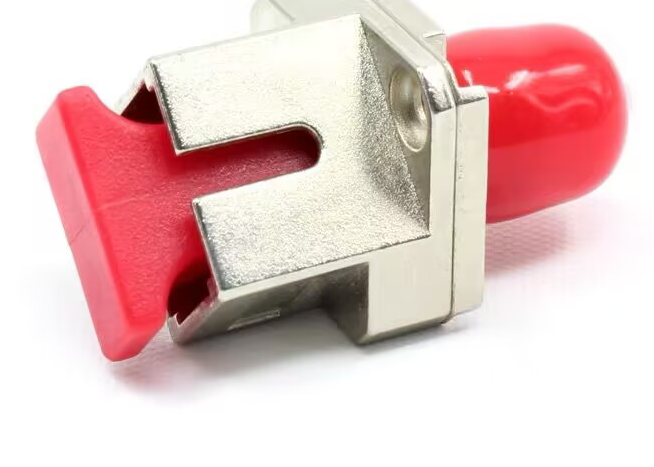

SC-FC Fiber Optic Adapter
Product Description
BRIEF INTRODUCTION
Homk provides kinds of Hybrid Adapter, plastic, semi-metal, metal type housing available.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN
SPECIFICATIONS (Hybrid type adapter)
| ITEM | PARAMETER | |
| Applicative adapter type | SC,LC,FC,ST,MU,D4,DIN | |
| Fiber mode | Single mode | Multi-mode |
| Adapter color | Blue, green, metal | Beige, metal |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB Max change,1000 mating | |
| Channels | Simplex,Duplex,4channels | |
| Body material | Plastic or metal | |
| Sleeve material | Ceramic(ZrO2) or Customized | |
| Operating Temperature | -20ºC to +70ºC | |
| Storage Temperature | -40ºC to +85ºC | |
