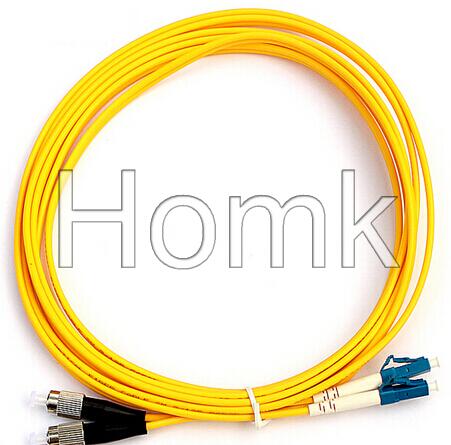

Fiber Patch cord (LC-FC DX SM)
Fiber Optic Patch Cord, also named Fiber Optic Jumper or Fiber Optic Patch Cable,
is one of the most frequently used components in fiber optic network, and is used to
link the equipments and components in fiber optic network.
Features:
1.Price-Competitive
2.Low Insertion Loss & PDL
3. Customized lengths(1m/2m/3m)
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Polishing Options: PC/UPC/APC
6.Feature Connector with Ceramic Ferrules
Details:
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
TIA/EIA-455-107 | ≥55dB(APC) | |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
