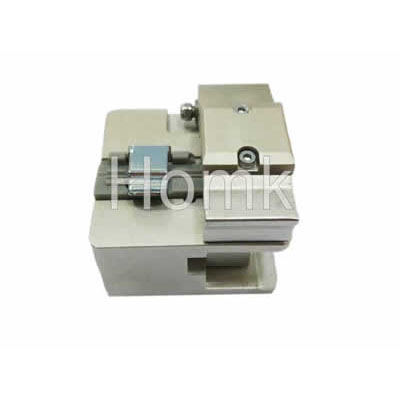

Optical Fiber Cleaver(HK-22K)

Optical fiber cleaver
The optical fiber cleaver is a high precision, the optical fiber cleaver apply to single core optical fiber precision cutting, the optical fiber cleaver applies both to 250 μ m including fiber, and also applies to 900 μ m coating of optical fiber.

Optical fiber cleaver Features:

Cutting more accurate, do not need special skills.

Cleaved angle: 0.5°

Cut length: 0.9 mm optical fiber 10-16 mm; 0.25 mm optical fiber for 9 and 16 mm

Bare fiber diameter: 125μ M

Coating outside diameter: 0.25 -0.9 mm

Fiber type: Single tube fiber and Ribbon fiber(exchangeable)

The blade life: 36000 fiber core (1000 × 12 PCS blade Angle fiber core × 3 PCS blade height)

Size: 63 W x 76 D x 63 H (mm)

Weight: 430 g
