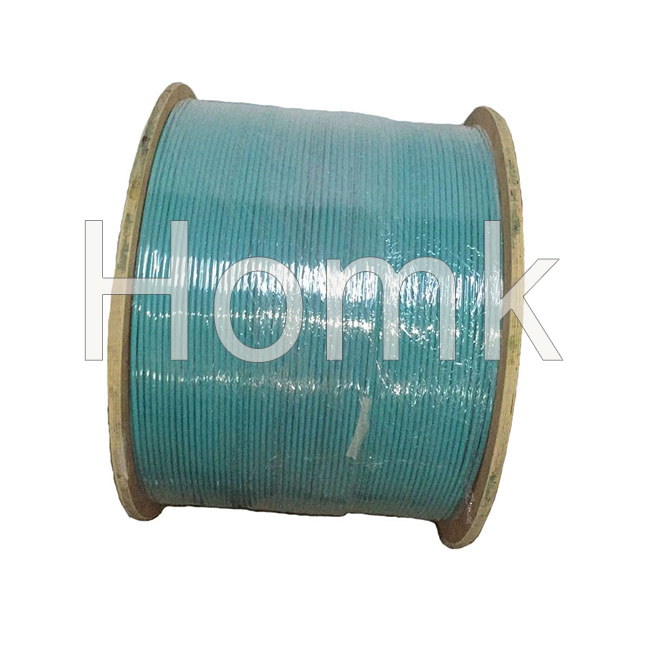

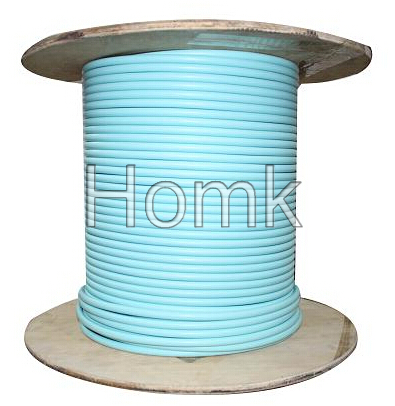

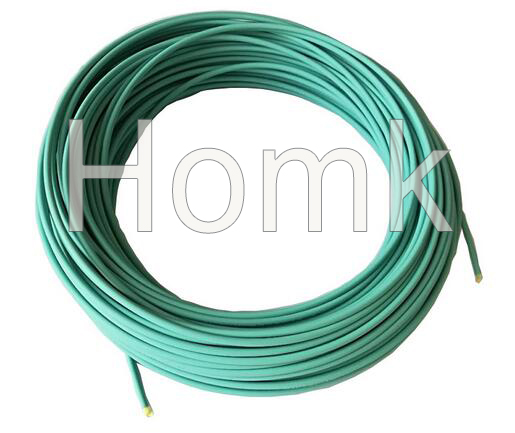

OM3 Fiber Optic Cable
Characteristic
1.Excellent stripping performance of tight buffer fiber
2.Cable diameter and bending radius small, It can installation freely in narrow room
Geometrical Characteristics
Cable Type | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
Cable Dimension(mm) | 5.0±0.2 | 5.1±0.2 | 5.3±0.2 | 5.9±0.2 | 6.6±0.2 | 7.5±0.3 | 8.5±0.5 |
Cable Weight (kg/km) | 19 | 21 | 23 | 28 | 34 | 46 | 57 |
TBF Diameter(μm) | 900±50 |
Mechanical Characteristics
Tensile strength(N) | Long Term | 200 |
Short Term | 660 | |
Crush Resistance (N/100mm) | Long Term | 300 |
Short Term | 1000 | |
Bending Radius(CM) | Dynamic | (D:TBF Diameter) |
Static | (D:TBF Diameter) |
Transmission Characteristics
/ | SMF | 50/125 | 62.5/125 |
/ | 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
Attenuation(db/km) | ≤0.4/0.3 | ≤3.5/1.5 | ≤3.5/1.5 |
Minimum Bandwidth(MHz·km) | ----------------------- | ≥400/400 | ≥160/500 |
