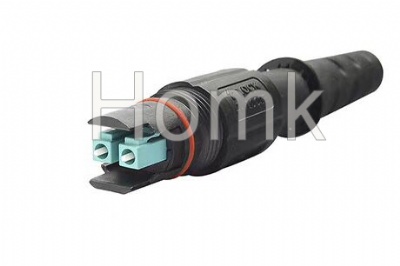

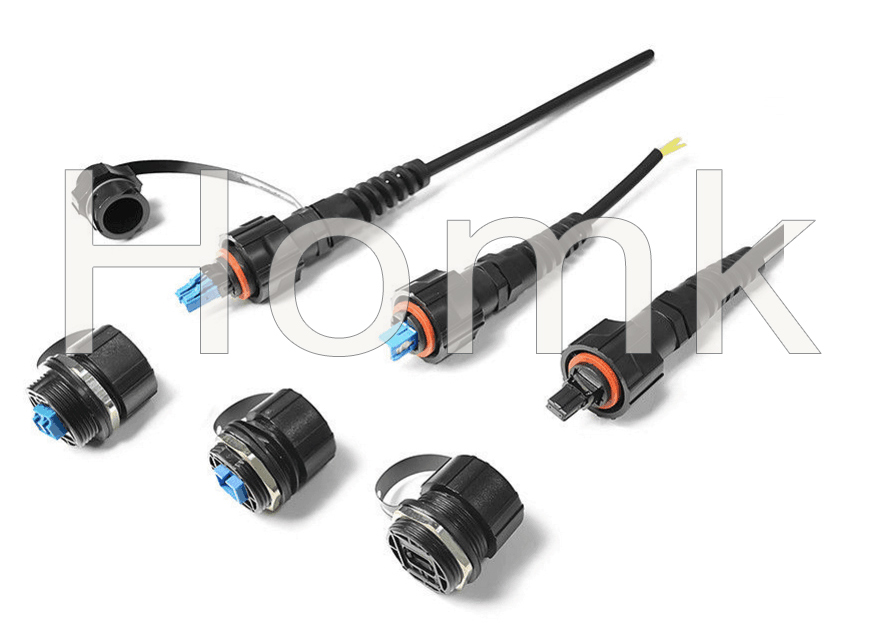

ODVA-LC waterproof fiber optic connector
Application
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification
Cable Parameters
Fiber Count | Cable Dimension/mm | Cable Weight/g | Tensile/N | Crush N/100mm | Min. Bend Radius/mm | Range of Temperature | |||
2 | 7.0±0.2 | 42.3 | long term | short term | long term | short term | Dynamic | Static | |
200 | 400 | 1100 | 2200 | 20D | 10D | -30~+70 | |||
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
Item | Unit | Specifications |
Attenuation | dB/km | 1310nm≤0.4 1550nm≤0.3 |
Dispersion | Ps/nm.km | 1285~1330nm≤3.5 1550nm≤18.0 |
Zero dispersion wavelength | Nm | 1300~1324 |
Zero dispersion slope | Ps/nm.km | ≤0.095 |
Fiber cutoff wavelength | Nm | ≤1260 |
Mode field diameter | Um | 9.2±0.5 |
Mode field concentricity | Um | ≤0.8 |
Cladding diameter | Um | 125±1.0 |
Cladding non-circularity | % | ≤1.0 |
Coating/cladding concentricity error | Um | ≤12.5 |
Coating diameter | Um | 245±10 |
bending, dependence induced attenuation | 1550nm, 1turns,32mm diameter 100rums,60mm diameter | ≤0.5 db |
Proof test | kpsi | ≥100 |
Connector Specification
Item | PARAMETER |
Connector type | LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional |
Fiber type | Single mode 1310/1550 or multimode 850/1300 |
Inertion loss | SM ≤0.2dB MM ≤0.2dB |
Returen loss | SM ≥50dB MM ≥35dB |
Repeatability | ≤0.1 |
Interchangeability | ≤0.2dB |
Durability | ≤0.2dB |
Fiber Length | 1m ,2m,3m .....any length for optional |
Length and tolerance | +10cm |
Operating Temperature | -45~85℃ |
Storage Temperature | -45~85℃ |
