NTT fiber connector cleaner CLETOP Type-B
Designed so that all operators can consistently achieve high quality cleaning without alcohol or other solvents.
Palm-sized and lightweight. Easy and safe to use whether in the engineering lab, on the production line, or in the field.
Cleaning tape is replaceable and cost effective.
One cleaning tape can be used for over 400 wipes.
Has excellent anti-static properties to avoid reattachment of dust to the ferrule after cleaning.
Specifications

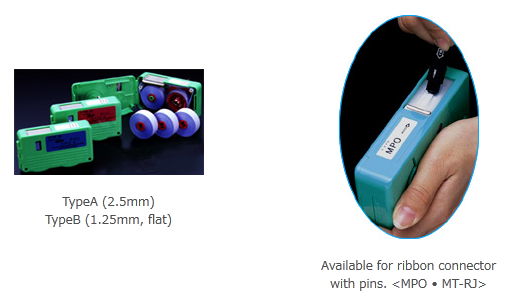

| Ferrule | φ2.5mm | φ1.25mm | MT-RJ | MPO |
|---|---|---|---|---|
| Type | Type A | Type B | Type MT-RJ | Type MPO |
| Part No. | 14100501 | 14100601 | 14100101 | 14100201 |
| Shape of rubber pad | ||||
| Cleans per reel | more than 400 times | more than 400 times | more than 400 times | more than 400 times |
| Connectots cleande | SC, SC2, FC, ST, DIN, D4 | MU, LC, MT, MPO, MT-RJ without pins, Biconic | MT-RJ with pins | MPO with pins |
| Dimension W × H × D mm | 130 × 75 × 40 | |||
| Weight (g) | 160 | 160 | 160 | 160 |
| Packaging | 1 | 1 | 1 | 1 |
| Remarks | - | - | - | - |
| Consumables | Replacement reel blue (6 pcs/set) | Replacement reel white (6 pcs/set) |
|---|---|---|
| Part No. of cosumable | 14100700 | 14100710 |
Caution:To ensure consistent high-quality cleaning performance, it is recommended that the authentic CLETOP replacement reel be used.
Notice1:Please do not use this product for other purposes than cleaning ferrule end-faces.
Notice2:The cleaning perforrmance may change depending upon the environment and contamination types
