Details

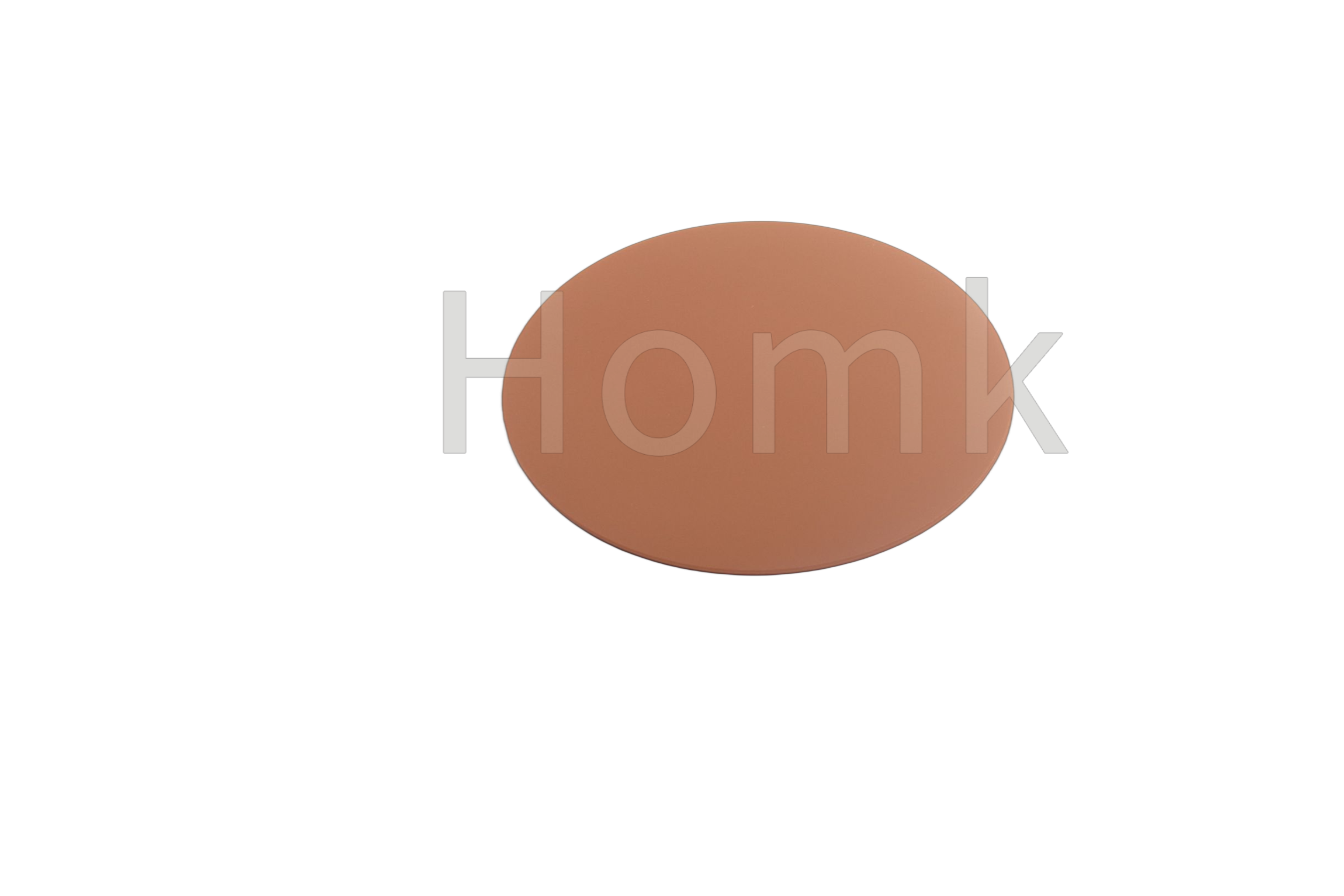

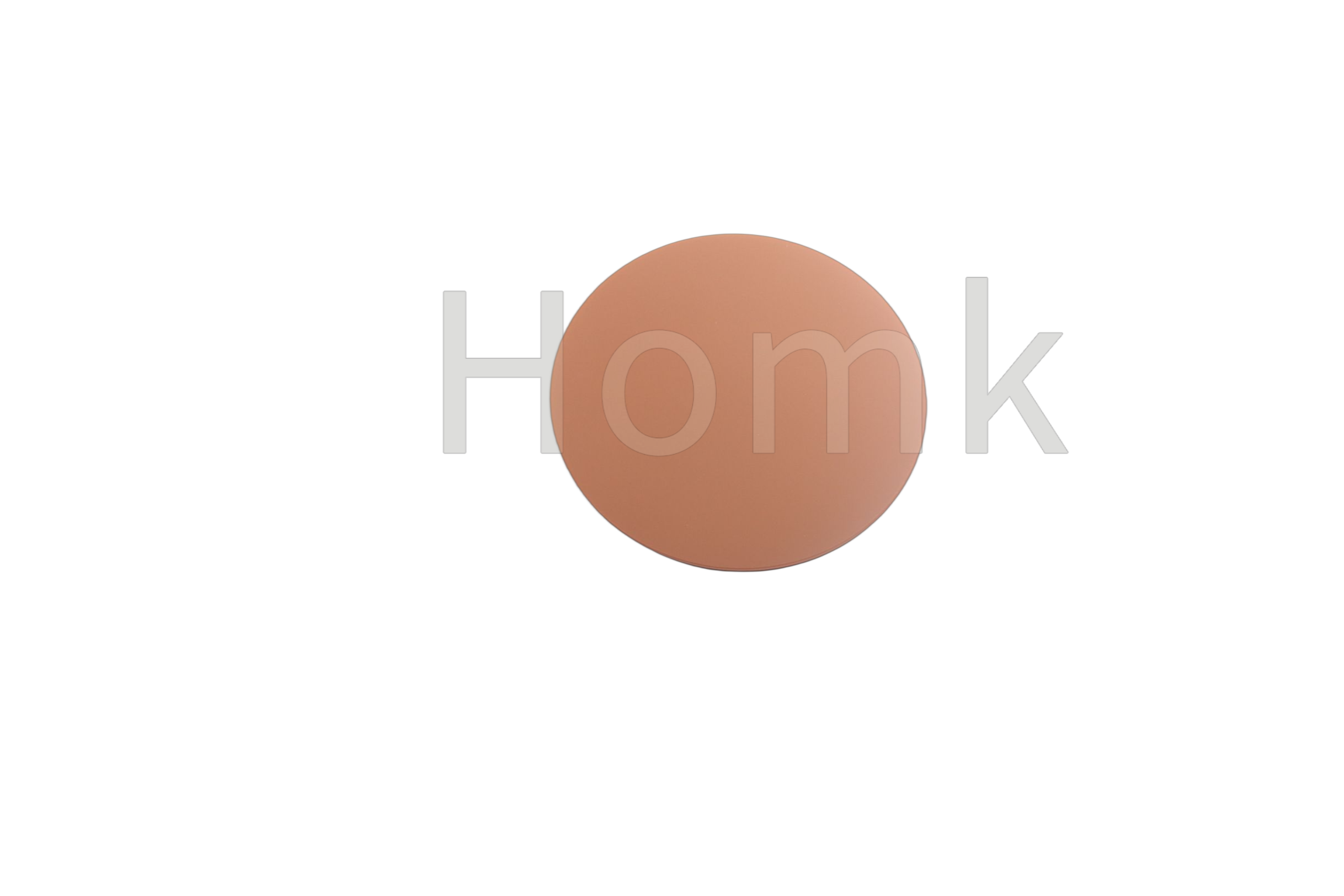

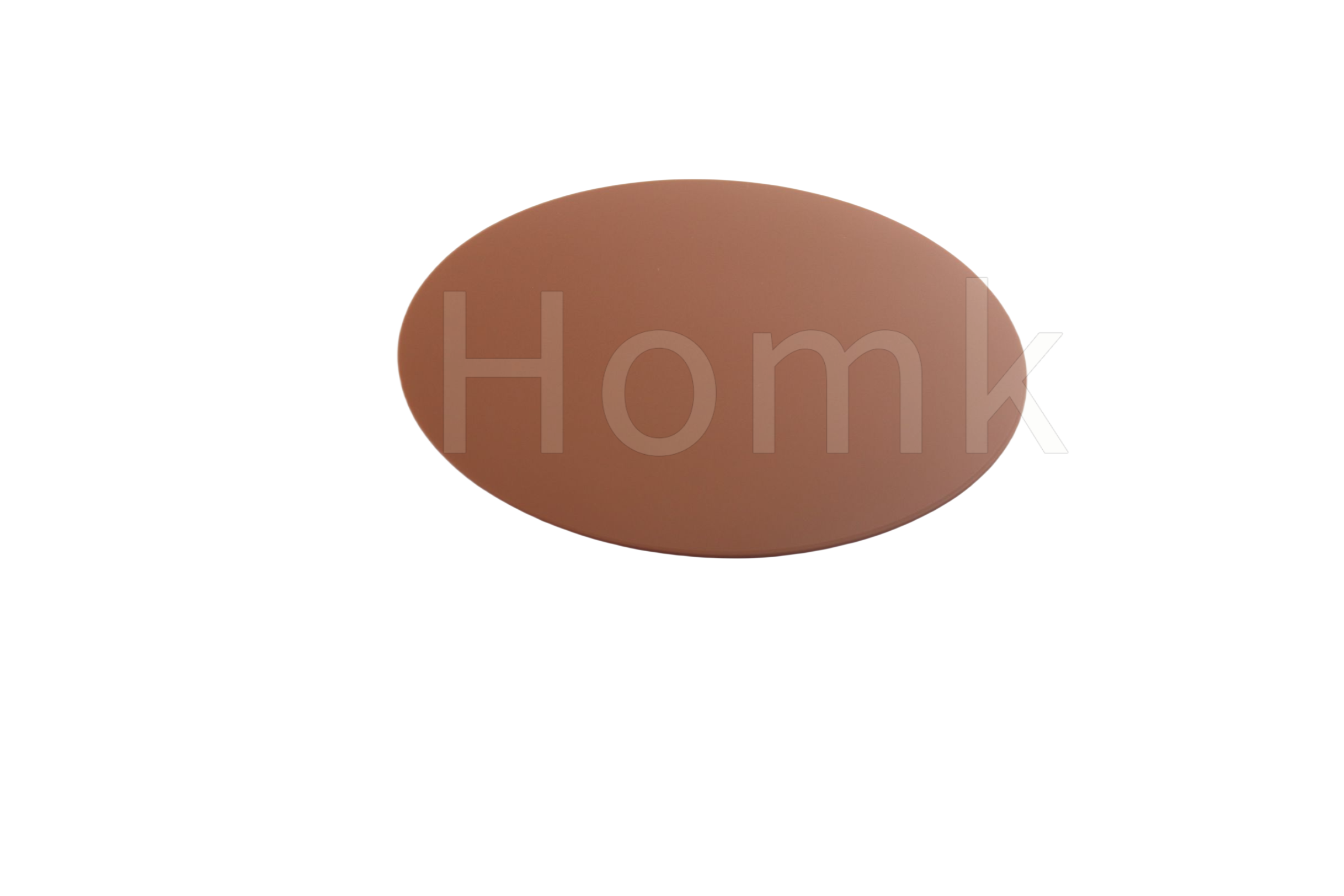

MIPOX Polishing films are polishing materials with ultra-precision flexibility. They are made with diamond powders evenly coated on the surface of flexible substrate by adhesives and are often used for lapping and precision polishing of optical fiber pins, semiconducting materials, metal rollers, etc.
| Polishing Step | Polishing Film | Polishing Fluid | Thrust(Std.) | Polishing Time(Std.) | Polishing Film Life(Std.) |
| Adhesive removal(hand polishing) | Abrasive paper | None | Approx 1 to 2kg | 15 Sec | Dispose of every time |
| Grinding(1st polishing) | 9 mic | Water | Point 2 | 50 Sec | 30 times |
| Grinding(2nd polishing) | 3mic | Water | Point 2 | 50 Sec | 30 times |
| Grinding(3rt polishing) | 1mic | Water | Point 3 | 50 Sec | 30 times |
| Grinding(4th polishing) | ADS(0.05mic) | Water | Point 3 | 50 Sec | 10 times |
