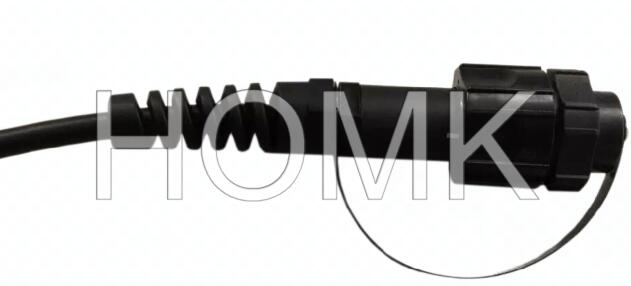

MPO waterproof Fiber Optic Connector

Fiberoptic patch cord Manufacturer 100% tested before delivery Custom Cable, Connector... Good Quality at Fair Price 1. Low insertion loss: 0.2dB 2. Compliance with TIA/IEA, IEC, RoHS 3. Zirconia ferrules Specification: Insertion loss: 0.2dB Max. Return loss(dB): ≥ 50(PC), ≥ 55(UPC), ≥ 65(APC) Durability: 1000 time matings Operating Temp: -40 to +85 celsius Storage Temp: -40 to +120 celsius Technical Standard: · Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB; · Return Loss: SM PC≥ 50dB, UPC≥ 50dB, APC≥ 65dB; MM PC≥ 45dB, UPC≥ 45dB · Interchangeability: ≤ 0.2dB · Salt Spray: ≤ 0.2dB · Repeatability: (1000 times) ≤ 0.1dB · Vibration: (550Hz 1.5mm) ≤ 0.1dB · High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB · Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB · Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB · Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2dB · Apex Offset: 0μ M≤ ≤ 50μ M Features 1. Meet IEC, Telcordia-GR-326 and JIS performance requirement 2. RoHS Compliance 3.100% will be inspected before shipment 4. High interface performance 5. Latched push-pull integrated. 6. Differential colour coded 7. UL standard accessories Application: 1. Patch panels 2. Distribution frames 3. Maintenance or emergency restoration of fiber networks 4. FTTH Outlets, CATV, WAN, FTTP 5. Connection at the desk for LAN environments Order information: Fiber cores; Singel, dual. Cable diameter(mm): 0.9/ 2.0 /3.0 mm Fiber type: PC UPC APC Connector type: SC, FC, LC, ST, MTRJ, DIN, D4 Parameters S. M   PC UPC   APC Insertion Loss (Typical dB) < 0.35dB Return Loss(Typical dB) > =45 dB > =50 dB Mating Durability (500 cycles) < =0.2dB Temperature Stability < =0.3dB Operating Temperature ° C -40° C to +80° C Storage Temperature ° C -40° C to +85° C Connection Method Push-on
