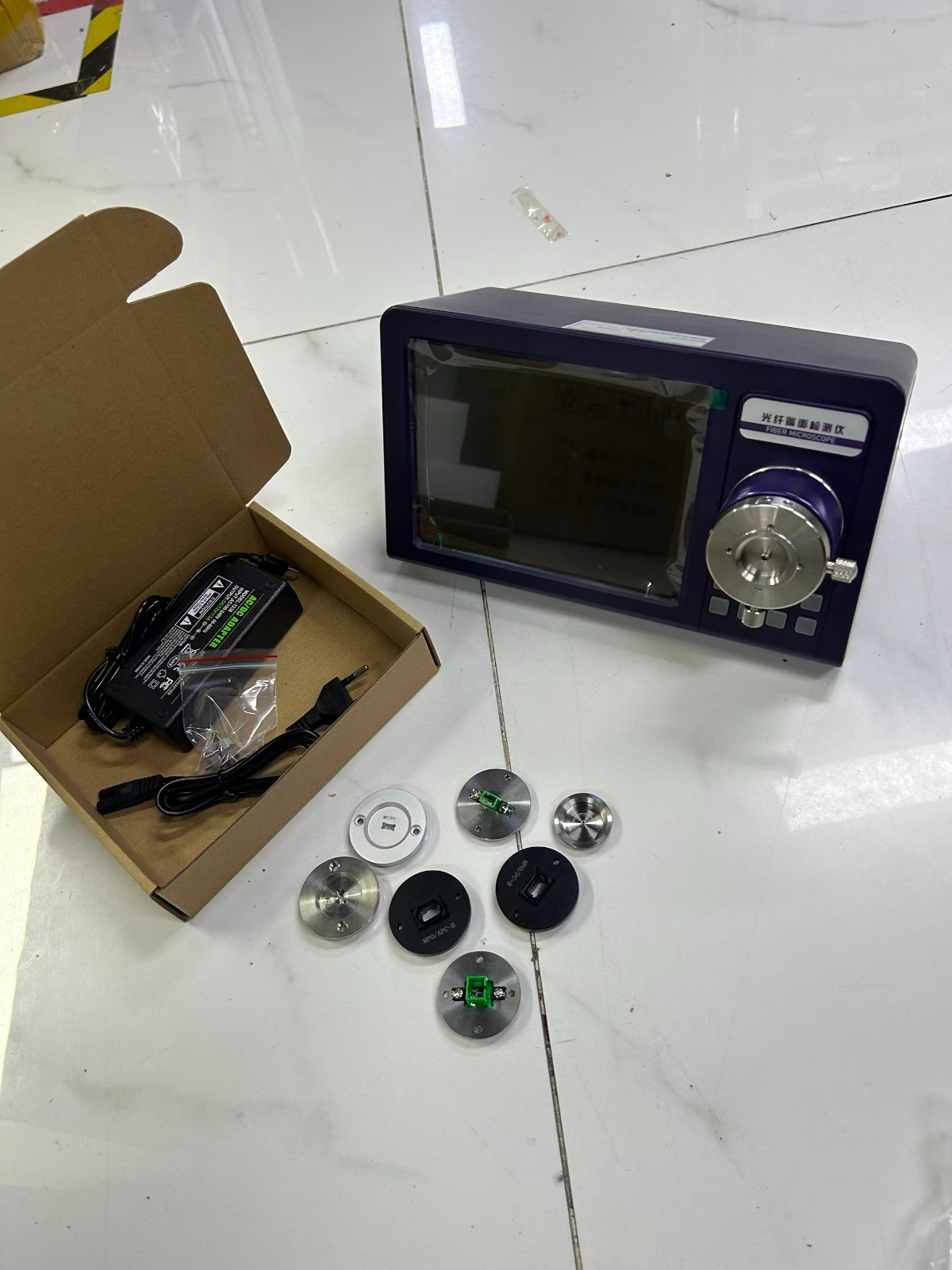

Fiber Microscope HK-400M 400x for MPO MTP patch cord

Specifications

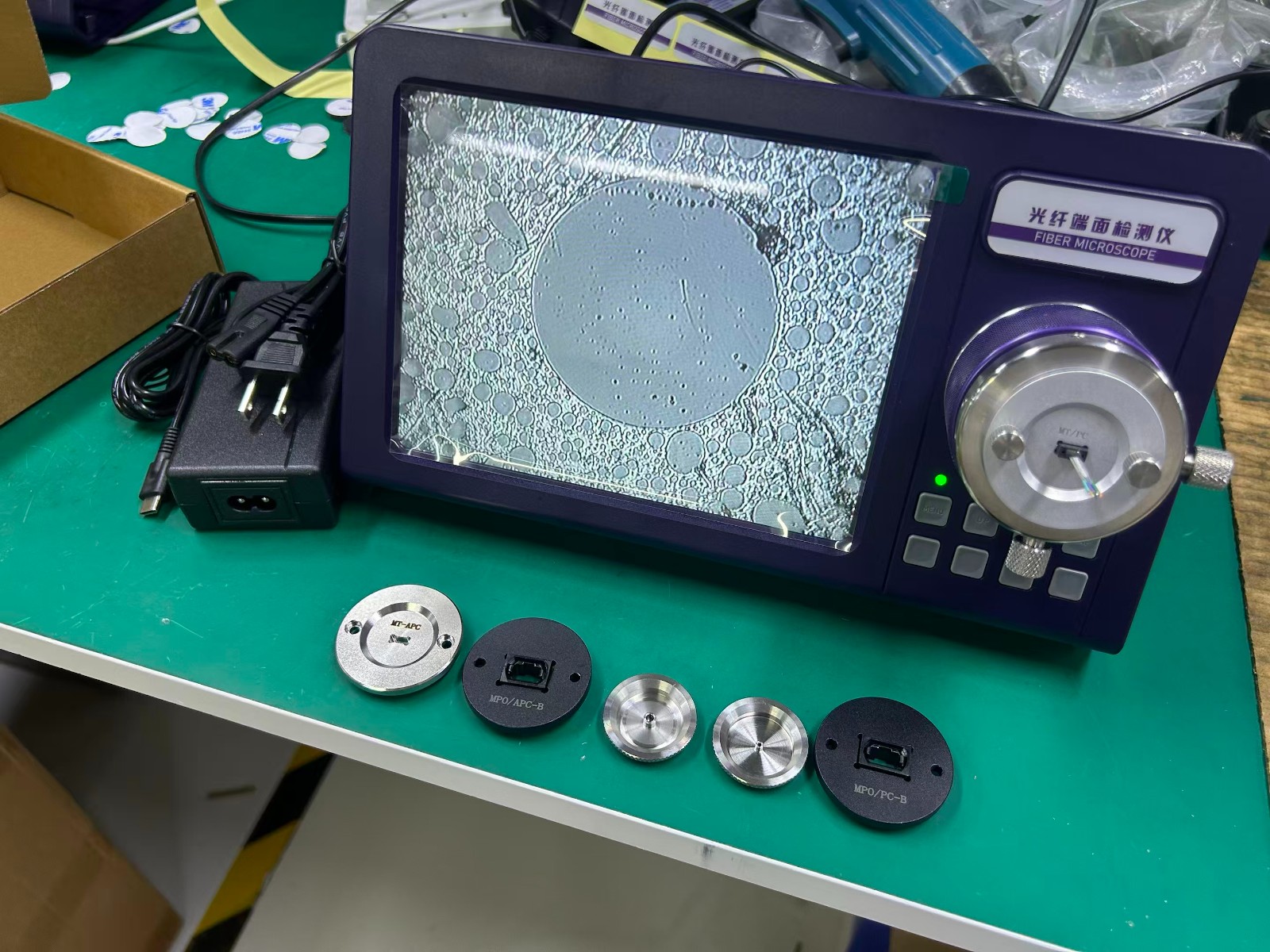

This series microscope can enlarge fiber end by 200x,400x or 800x magnification. Baseline is according with end face diameter measured on 8-inch screen. Then enlarged picture of fiber end face is showed on display through video signal. Finally fiber end defects can be easily found at a glance on the display.HK-400H series start work when power on. No cables between display and microscope makes it easy to manipulate, fast to work,and most of all greatly enhances work efficienctly.

The series inspector can quickly check blemish, scratch and chipping etc. defects on fiber jumper and fiber ferrule. Operators just need to visually inspect fiber.

end on LCD screen instead of directly view on it. Therefore no harm on human

eyes. As well known, harm is made by laser in fiber when operators directly

view fiber end.

Function and feature

l        Photograph

l        Image save

l        Image delete

l        X/Y axis adjustable

l        External monitor connection

l        External signal input

l        External USB signal input

l        External AV signal input

l        Brightness adjustable

l        Contrast adjustable

l        Saturation adjustable

l        Clock

l        External SD card connection

Technical parameters and specifications
