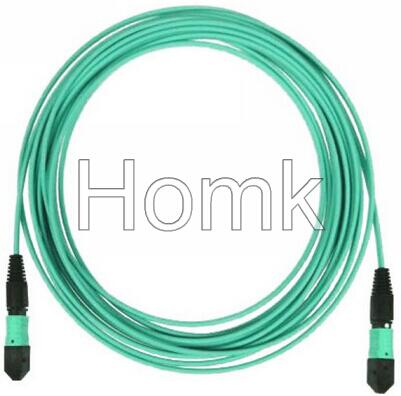

MPO-MPO OM3 fiber patch cord

Our optical fiber patch cord is high return loss and low insertion loss ,Insertion loss of this fiber patch cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB

Standard: IEC, Telcordia GR-326-CORE

Polish:PC/UPC/APC

Operating temperature range: -40°C--80°C

Storage temperature range: -40°C--80°C



Tensile strength: >10kg

Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability

Spec.	fiber optic patch cord
Insertion loss	Less than 0.2dB
Return loss	MM more than 35dB
	SM more than 55dB
	APC more than 60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operting termperature	-40°C~80°C
Storage temperature	-40°C~80°C
Tensile strength	>10kg
Min.bending radius	35mm
Length	Customized
