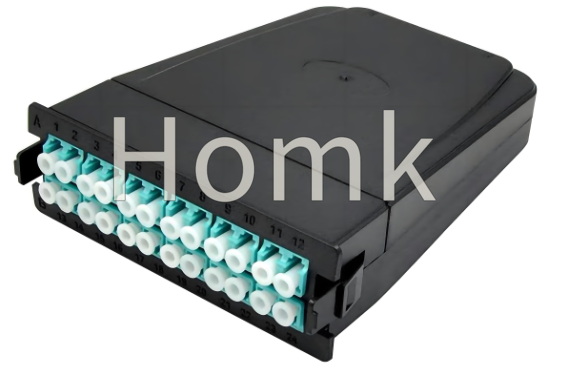

MPO-LC 24 Ports Terminal Box
Description:
1.48-fiber MPO(M) to LC duplex connector
2.All metal compact breakout protector, leading internal crimp process, most reliable.
3.LC end with number tube label, easy identification.
4.Available in G and L class help your budget control.
5.Available divider type or join type LC duplex.
6.All length cable is available based on your demand.
Applications
1. Data Centre Infrastructure
2. Storage Area Network-Fiber Channel
3. Emerging 40 & 100Gps Protocols
Parameters
|
| Multi Mode | Single Mode |
IL | MPO | Single max :0.35db (L) Single Max : 0.60db (G) | Single max :0.35db (L) Single max :0.75db (G) |
| LC | MAX :0.10dB(L) MAX :0.15 db (G) | max :0.30db |
RL | MPO | >20DB | >60DB (8 degree Angle Polish ) |
| LC | >30db | >50 db (UPC) >60DB(APC) |
Mechanical | MPO | <0.2DB, 200 times insertion |
|
| LC | <0.2db, 500times intertion |
|
| Working Temp | -20~ +60 'C |
|
Enviromental | Storage Temp | -40~ + 70'C |
|
| Install Temp | -5~ + 50'C |
|
