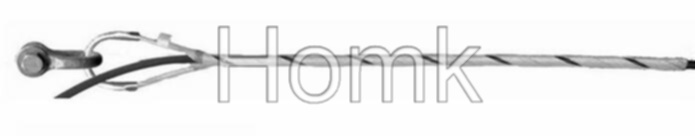

Low Tensile force Tension Clamp for ADSS Cable
The tension clamp is single preformed rods structure, simple and reliable ,convenient and quick installation, It is specially designed for short span length low tensile force ADSS cables.
Technical Data:
Grip Force:10KN
Recommended Span Length:≤100m
Data Sheet
| Specification Model | Suitable Cable Dia. | Dead end rods | Color Code |
| ANF 0900 010 | 8.1-9.0 | 725 | Black |
| ANF 1000 010 | 9.1-10.0 | 750 | Red |
| ANF 1110 010 | 10.1-11.1 | 800 | Orange |
| ANF 1220 010 | 11.2-12.2 | 850 | Yellow |
| ANF 1330 010 | 12.3-13.3 | 900 | Green |
| ANF 1440 010 | 13.4-14.4 | 950 | Cyan |
| ANF 1550 010 | 13.4-14.4 | 1000 | Blue |
| ANF 1660 010 | 15.6-16.6 | 1050 | Purple |
| ANF 1770 010 | 16.7-17.7 | 1100 | Black |
| ANF 1880 010 | 17.8-18.8 | 1150 | Red |
One set of Tension Clamp includes a unit of Dead end Rod, a Rope Thimble, and a unit of Shackle (U-4).
