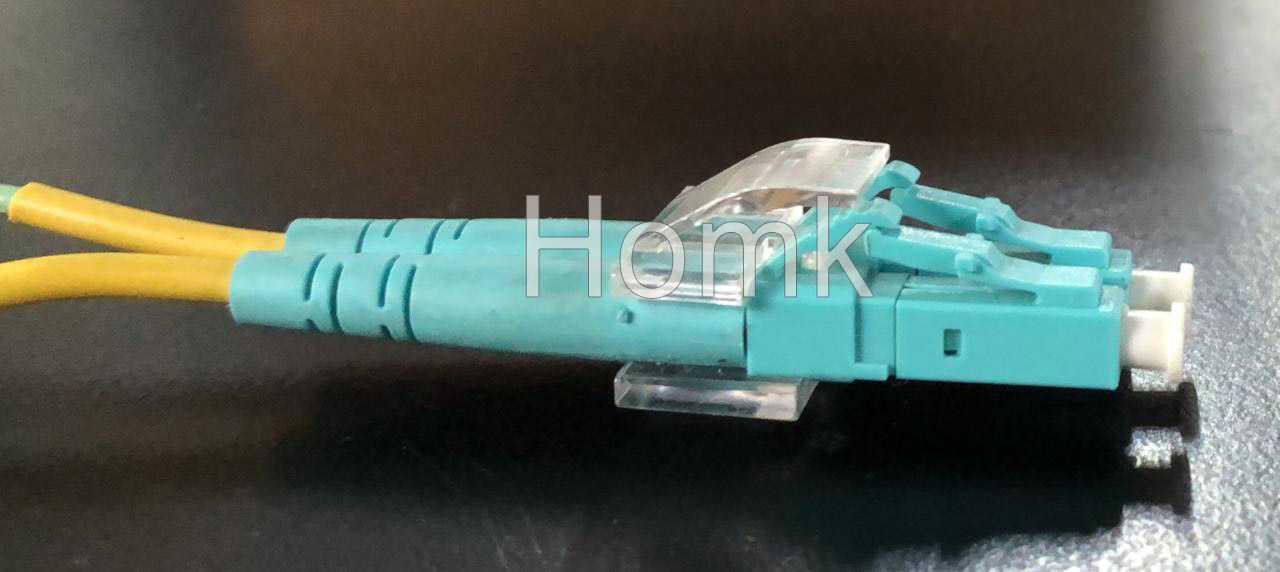

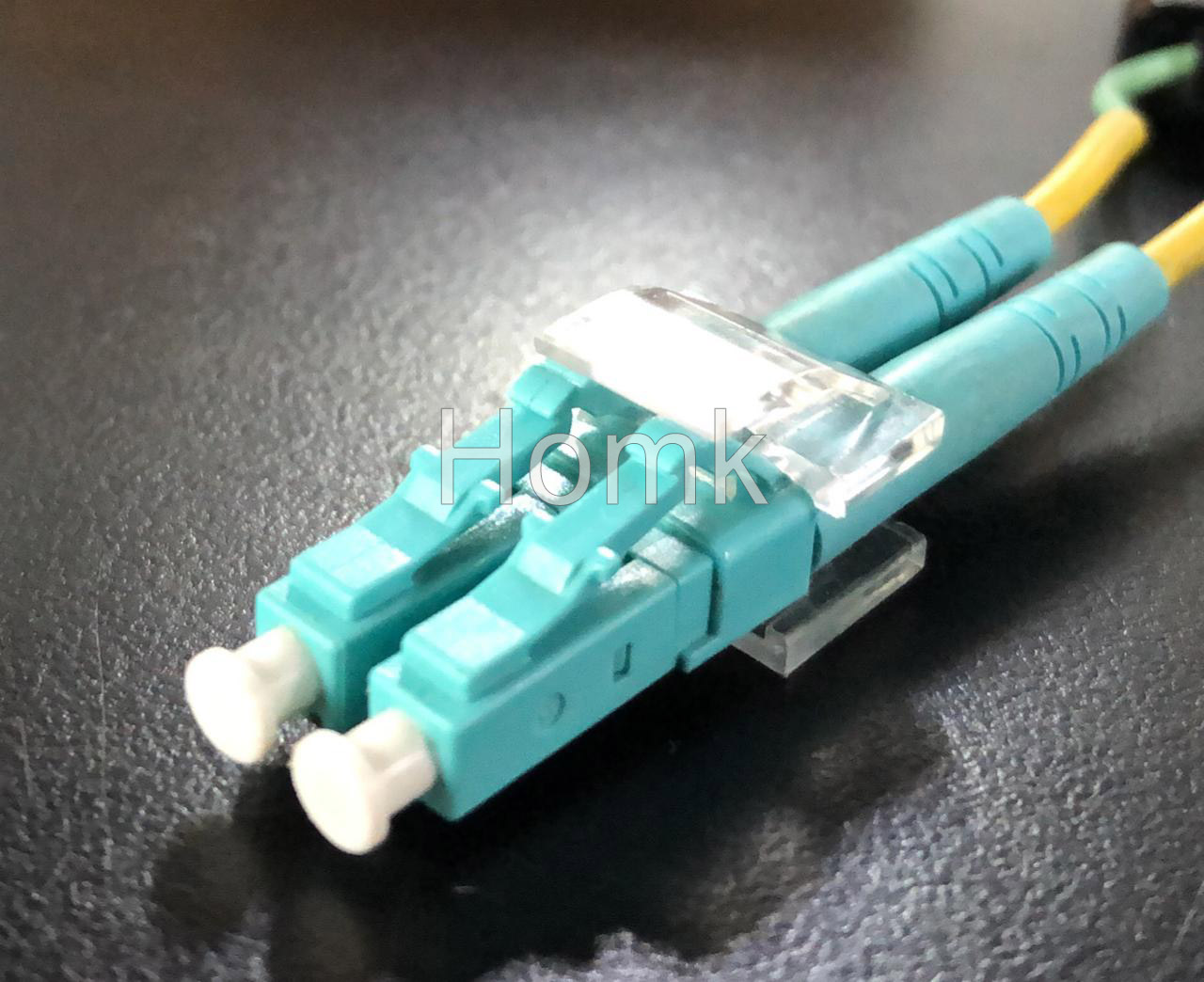

LC OM3 DX Fiber Connector
1. Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
2. Specifications: | ||||||||
Items | Single mode | Multimode | ||||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
Insertion Loss | <0.2dB | <0.3dB | ||||||
Return Loss | >45dB | >50dB | >60dB | 35dB | ||||
Durability | <0.1dB typical change,500 matings | |||||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:1um | 125um,Conectricity:1 to 3um | ||||||
125.3+1/-0um, Conentricity:1um | 127um,Conectricity:1 to 3um | |||||||
125.5+1/-0um, Conentricity:1um | 128um,Conectricity:1to 3um | |||||||
126.0+1/-0um, Conentricity:1um | ||||||||
