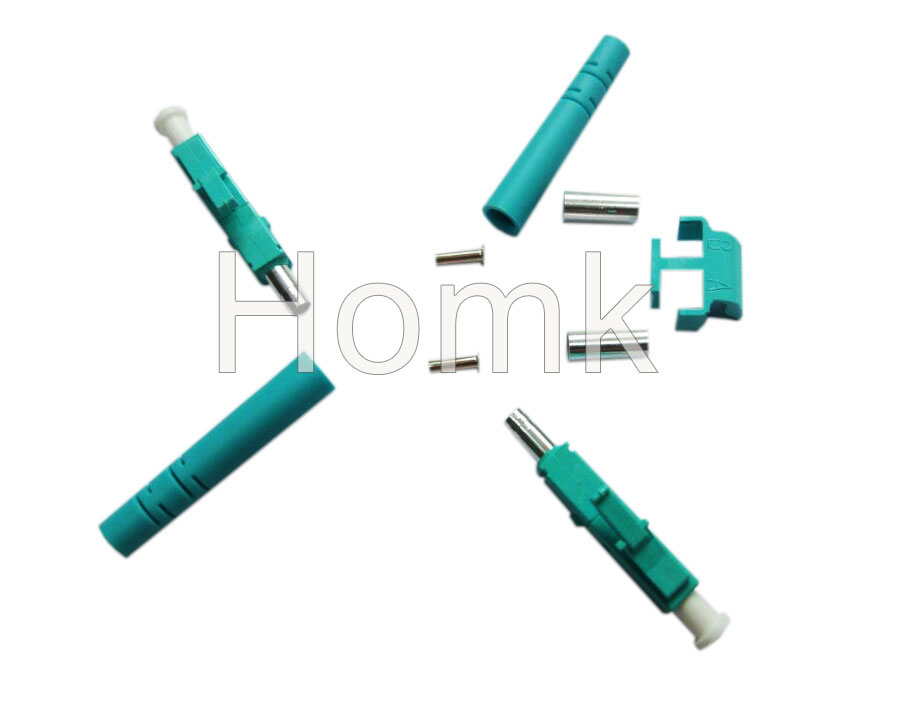

LC DX OM3 3.0mm Fiber Optic Connector
1. Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
2. Specifications: |
| | |
Items | Single mode | Multimode |
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insertion Loss | <0.2dB | <0.3dB |
Return Loss | e45dB | e50dB | e60dB | e35dB |
Durability | <0.1dB typical change,500 matings |
Operating Temperature | -40 to +75 | -40 to +75 |
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:d1um | 125um,Conectricity:1d3um |
125.3+1/-0um, Conentricity:d1um | 127um,Conectricity:1d3um |
125.5+1/-0um, Conentricity:d1um | 128um,Conectricity:1d3um |
126.0+1/-0um, Conentricity:d1um | |
