JW3205 power meter mini handheld

Details

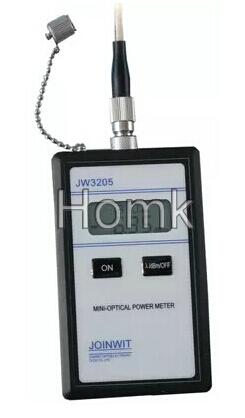

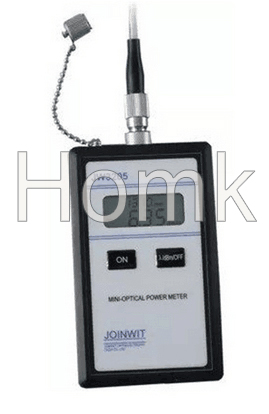

JoinWit fiber JW3205 Power Meter


JW3205 mini handheld optical power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. JW3205 in combination with the JW3110 mini handheld light source become the most portable and advantageous testing pair.

Features:

  • The most compact in Size, ideal for field operation

  • Power measurements in dBm and mw.

  • Energy-saving design, 10 minutes Auto-off function

Applications:

  • Maintenance in Telecom

  • Maintenance CATV

  • Test Lab of optical fibers

  • Other Fiber Optic Measurements



Specifications:



Type

JW3205A

JW3205B

JW3205C

JW3205D

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement Range(dBm)

-60~+3

-50~+10

-40~+20

-30~+30

Uncertainty

±5%

Calibrated Wavelength(nm)

850

980

1310

1550nm

Resolution(dB)

0.01

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery

Battery Operating Time

360 hours with three 1.5V batteries

Operating Temperature

-10 ~ +60

Storage Temperature

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

115X60X20

Weight(g)

105
