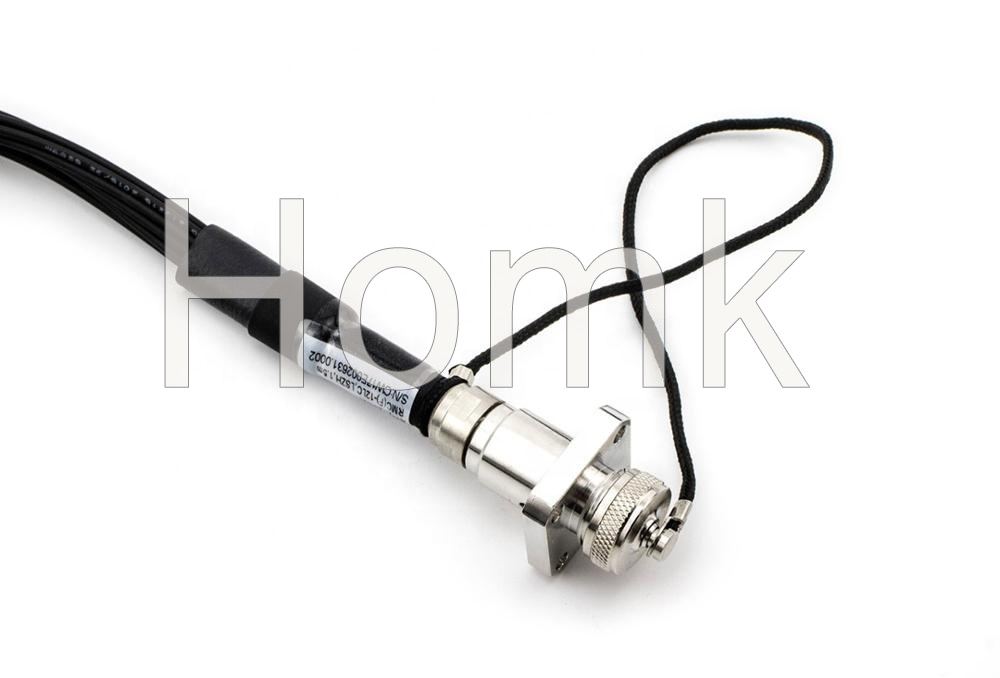

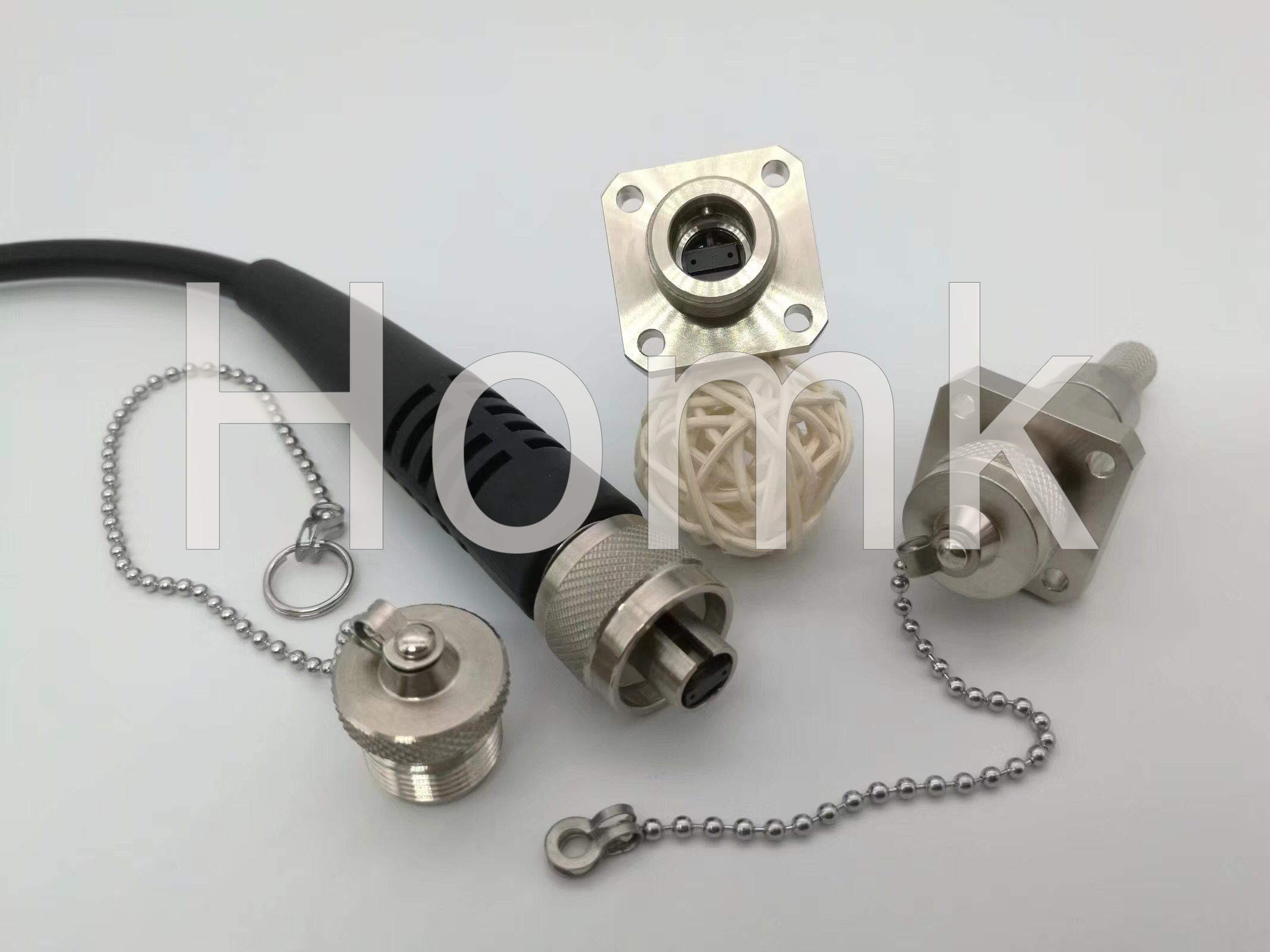

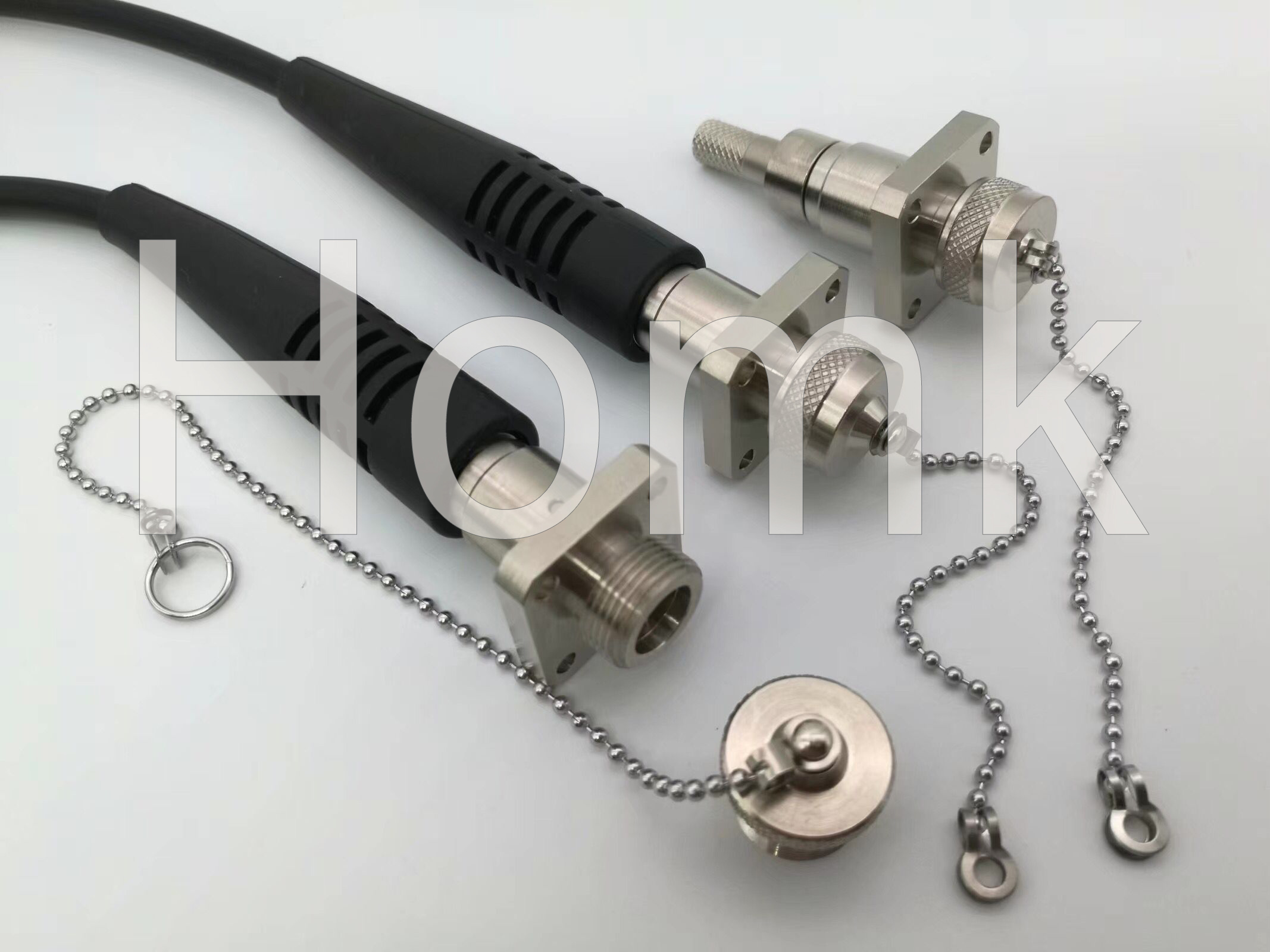

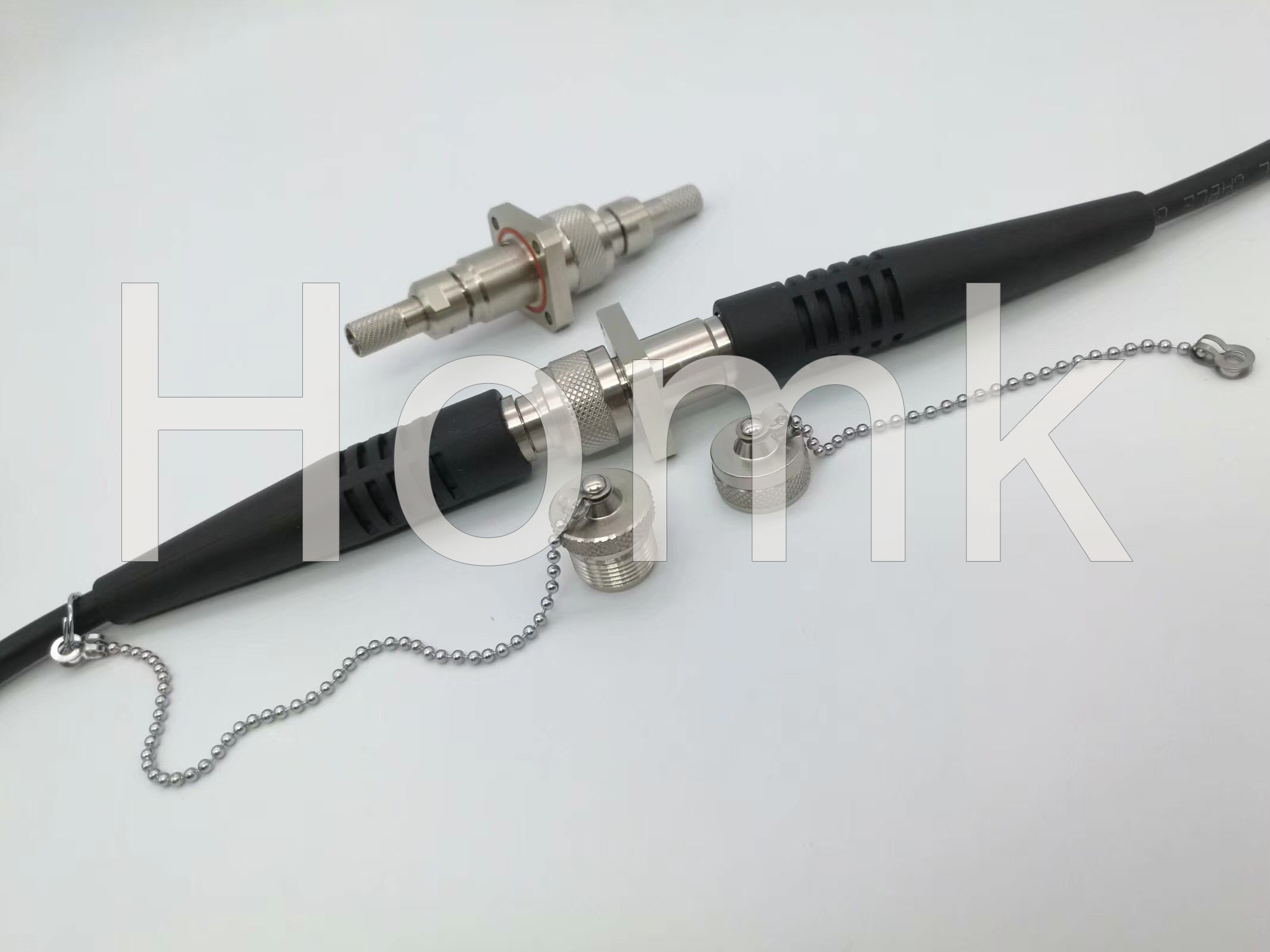

IP68 ODC-MPO ftta fiber patch cord connector
The
ODC Connector together with the far transmission cable, are becoming
the standard interface specified in 3G, 4G and Wimax Base Station remote
radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC
Cable assemblies have passed testes like salt mist, vibration and shock
and meet protection class IP68. They are well suited for Industrial and
Aerospace and Defense applications.
Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.
Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Pecification
| Fiber Core | 2,4,6,8 etc | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
