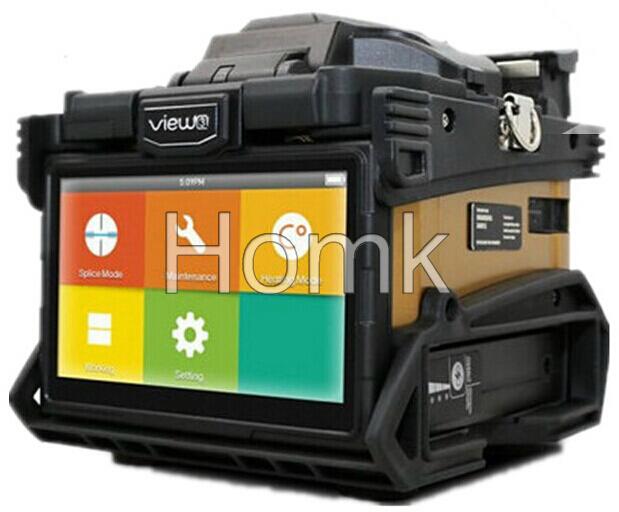

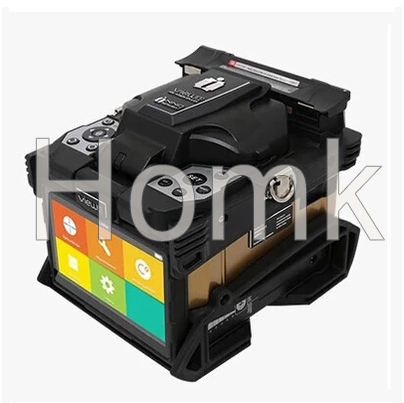

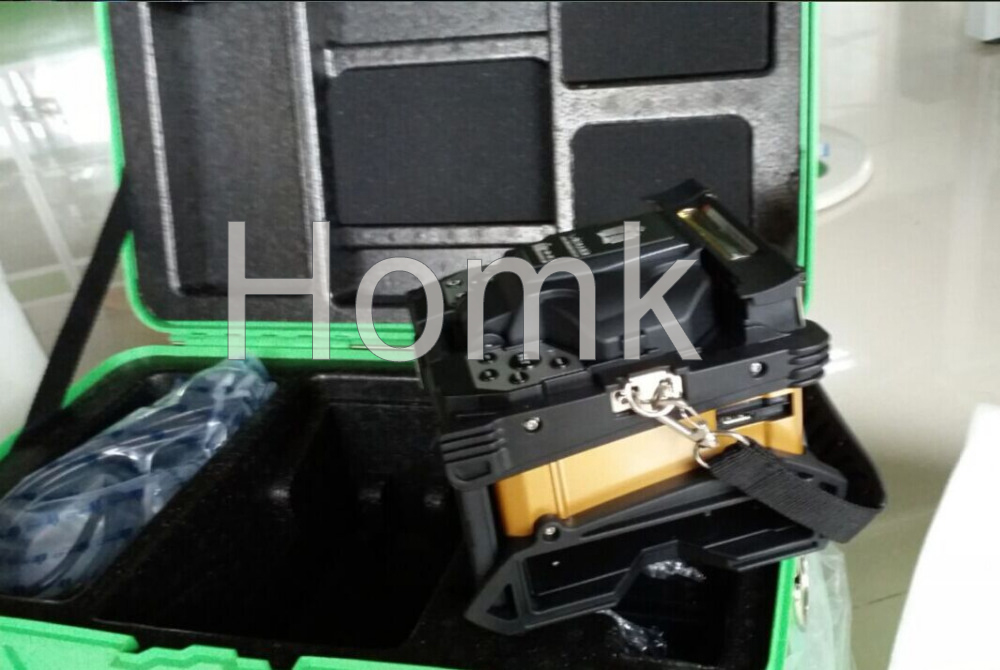

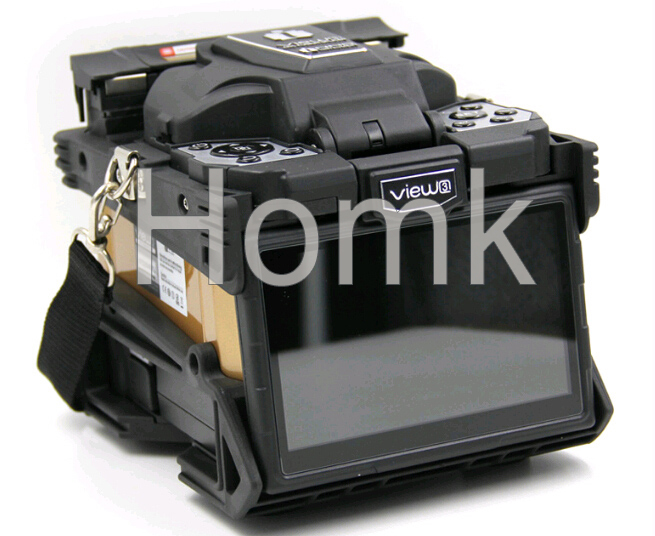

INNO View3 fusion splicer
Model :View 3
Korea Inno fiber fusion splicer is original made South Korea with high quality . Inno fiber fusion splicer of language can optional . English, Chinese, Korean, Russian, Spanish, Portuguese, German, French. We are agent in China. Inno view3/view5/view7/view12 fusion machine can optional . They are all core-aligement .
Features
1. Compact & Light weight
2. Fully Automatic Operation
3. 5000m altitude ensures Splice Quality
4. SYSTEM TEST ensures the best working condition
5. Pause function, convenient for scientific research
6. Applicable for SOC(splice on connector)
7. High battery capacity, up to 120 times of continuous splice and heat
8.Inno view12 is ribbon fusion machine .
9.Competitive price of inno splicing machine .
Applications
1. FTTH&FTTX
2. Other optical transmission systems
3. Optical Signal Distribution
4. Telecommunication Network and fiber optic sensors
5.Splicing machine.
| Model | View 3 |
| Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
| Weight | 2.31KG (with battery) / 1.95KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard) |
| Return Loss | >>60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / SM mode : 9 sec |
| Estimated Splice Loss | 20~60 mm |
| Heating Time | FP-03 typical heating time: 30 sec |
| Results Storage | The last 2000 results |
| Tension Test | Tension Test |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
